Lighting Size Guide

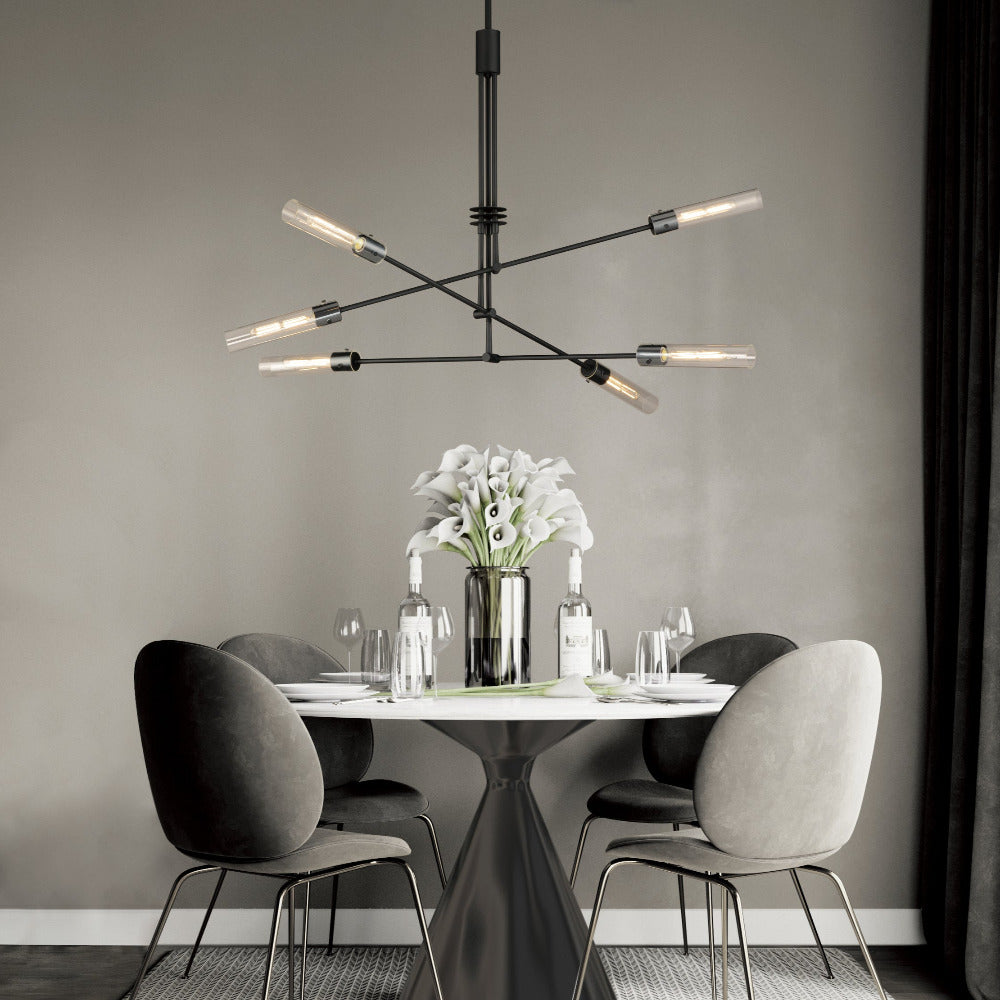

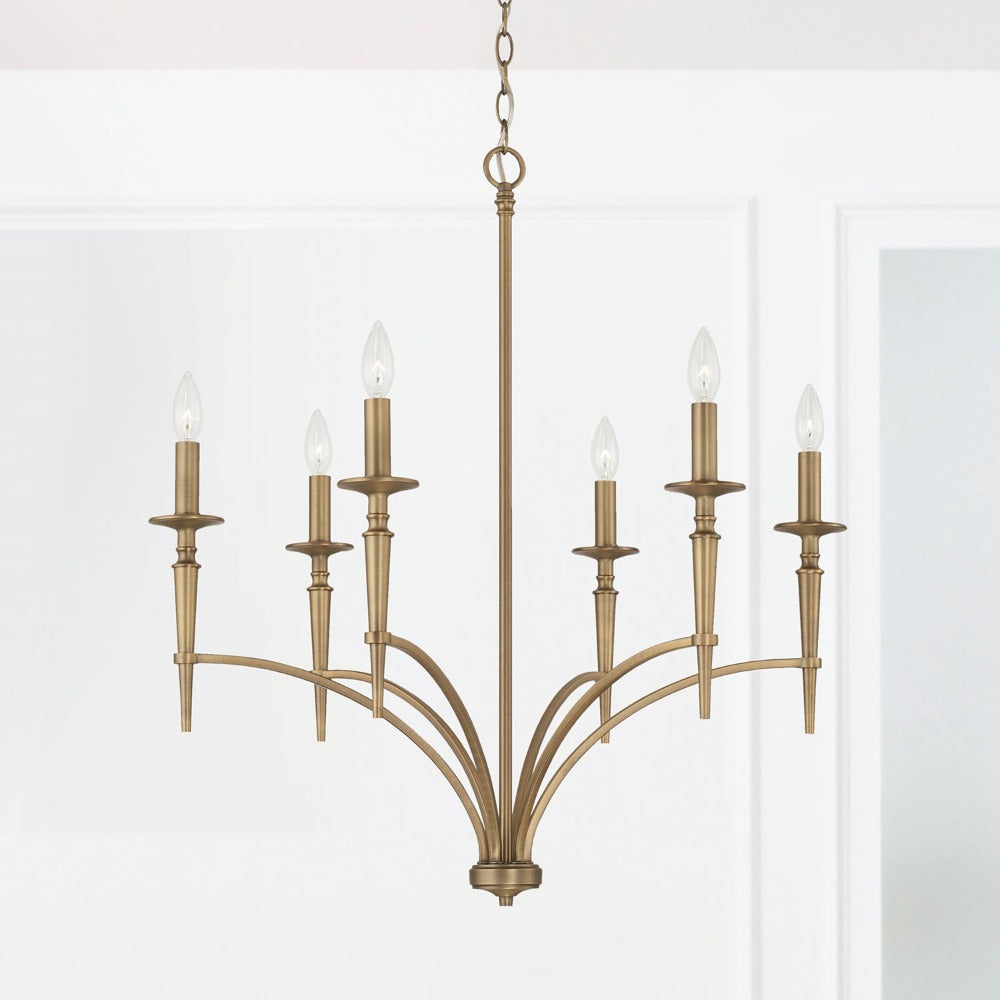

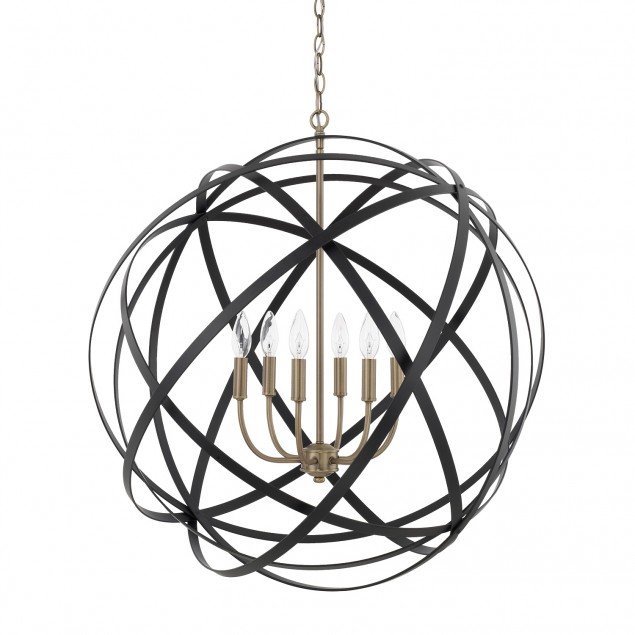

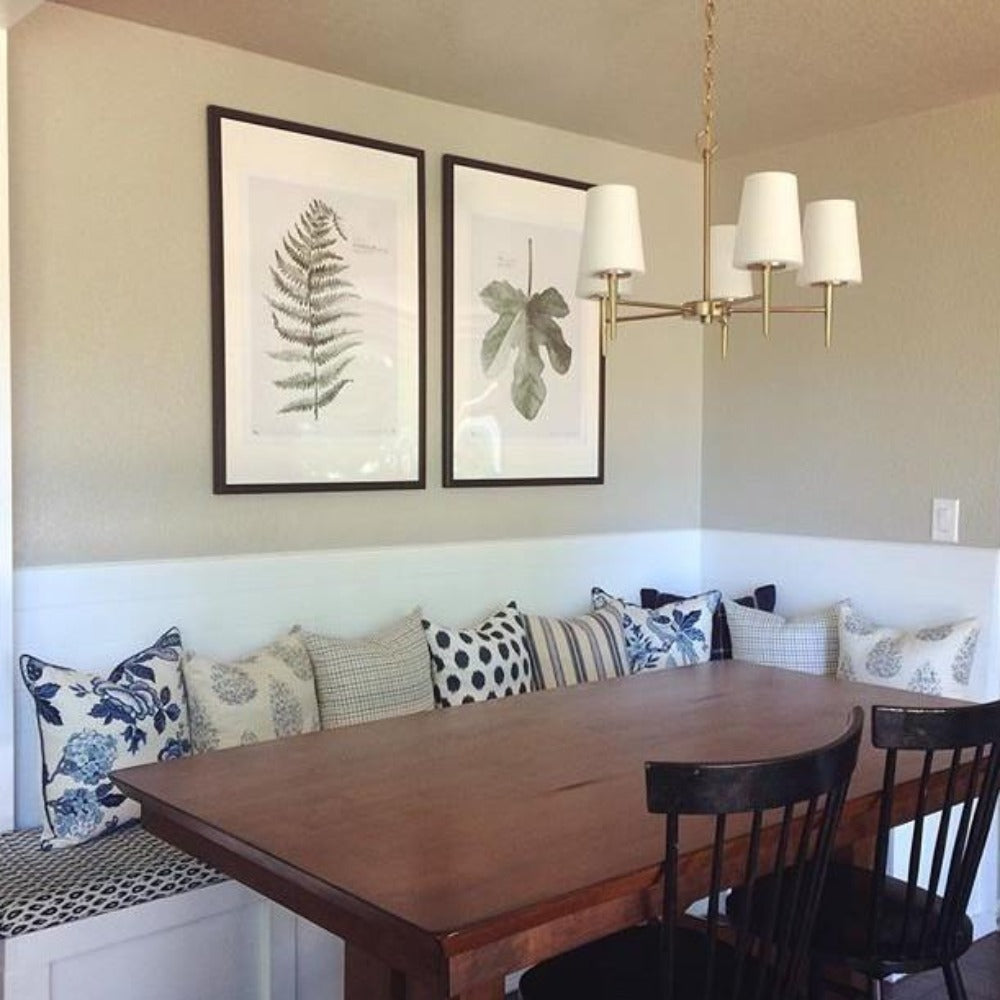

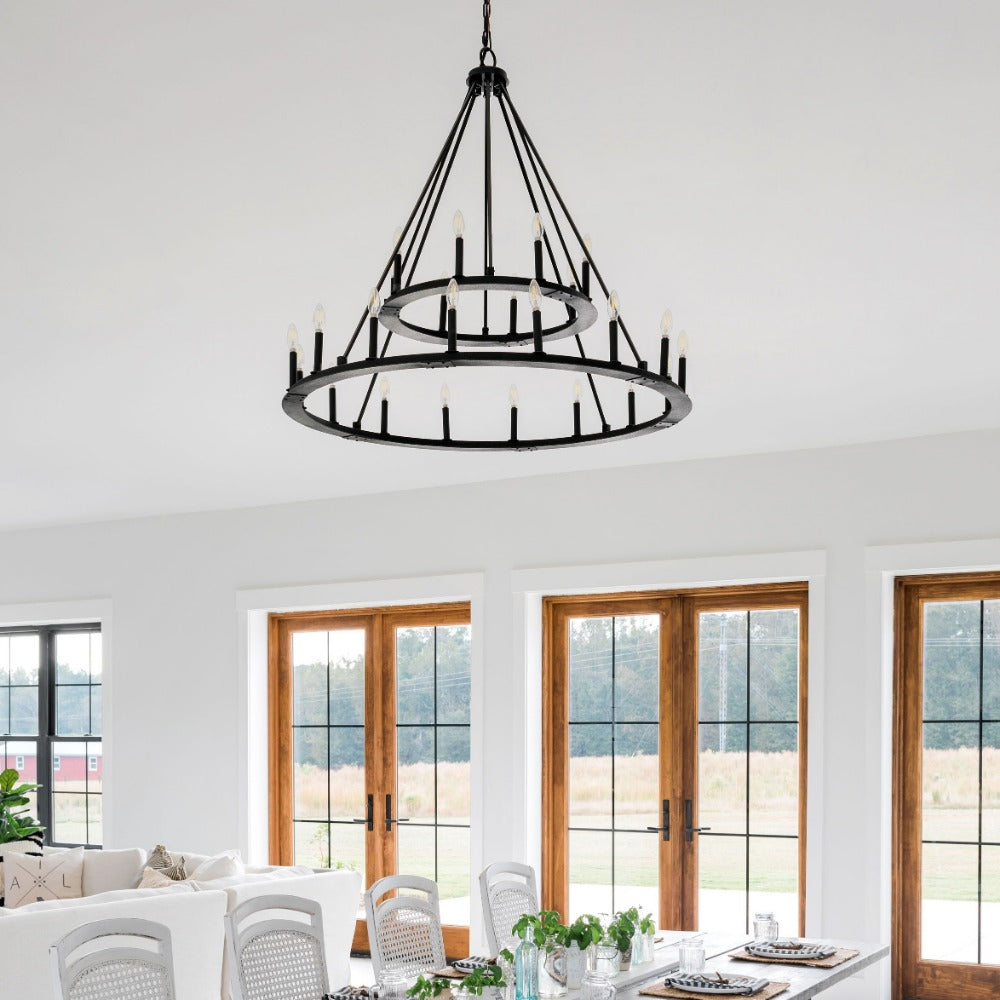

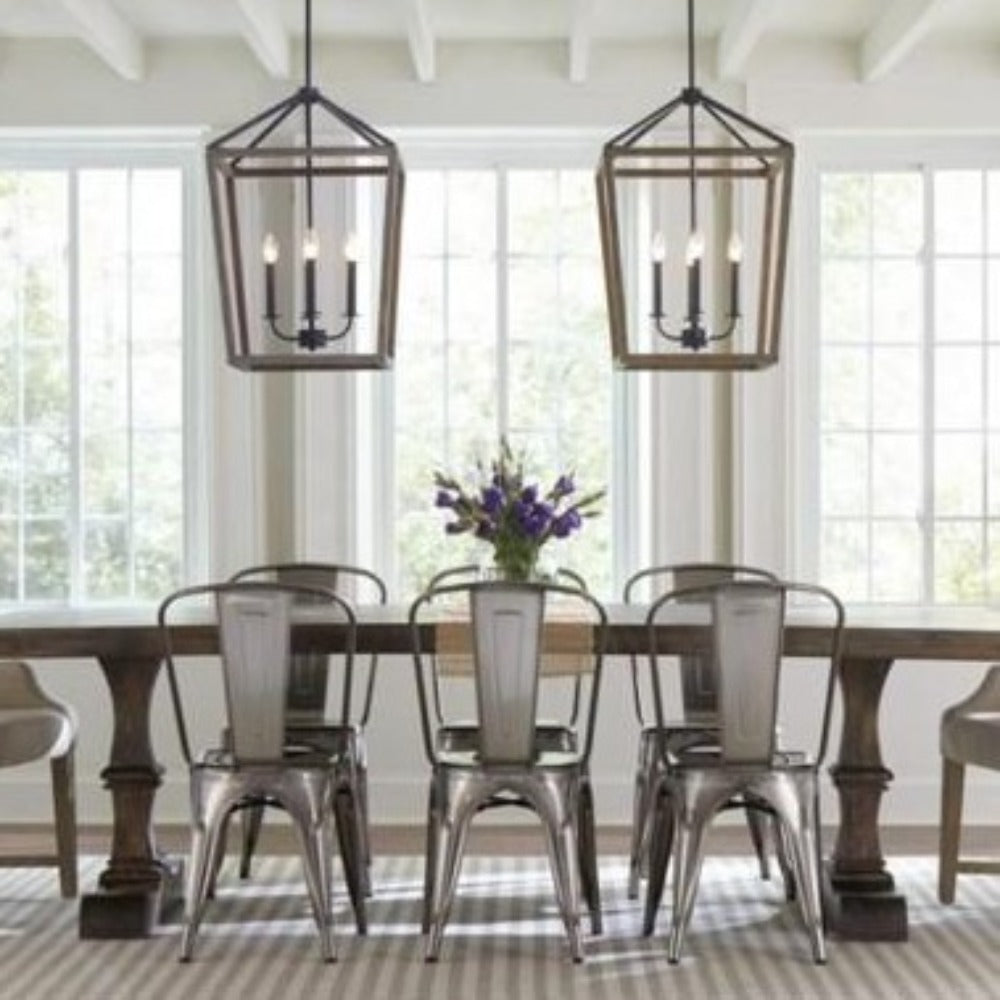

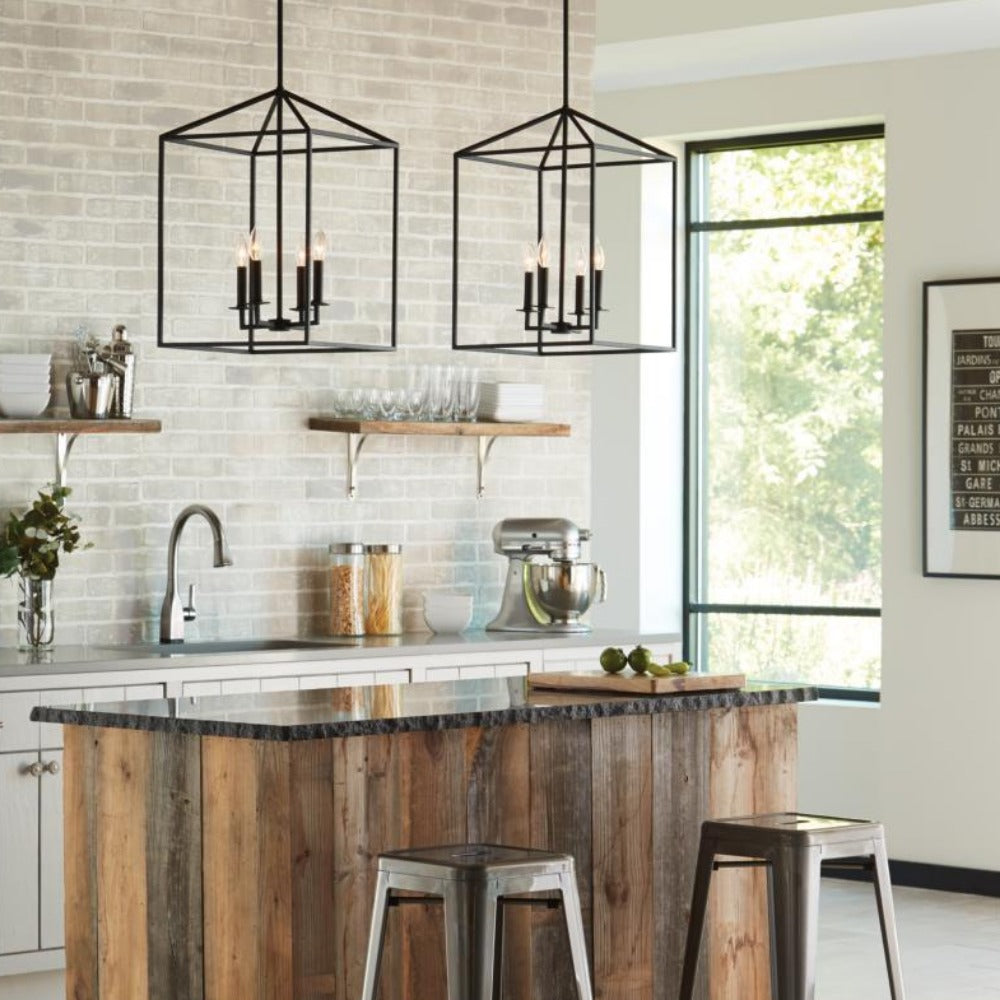

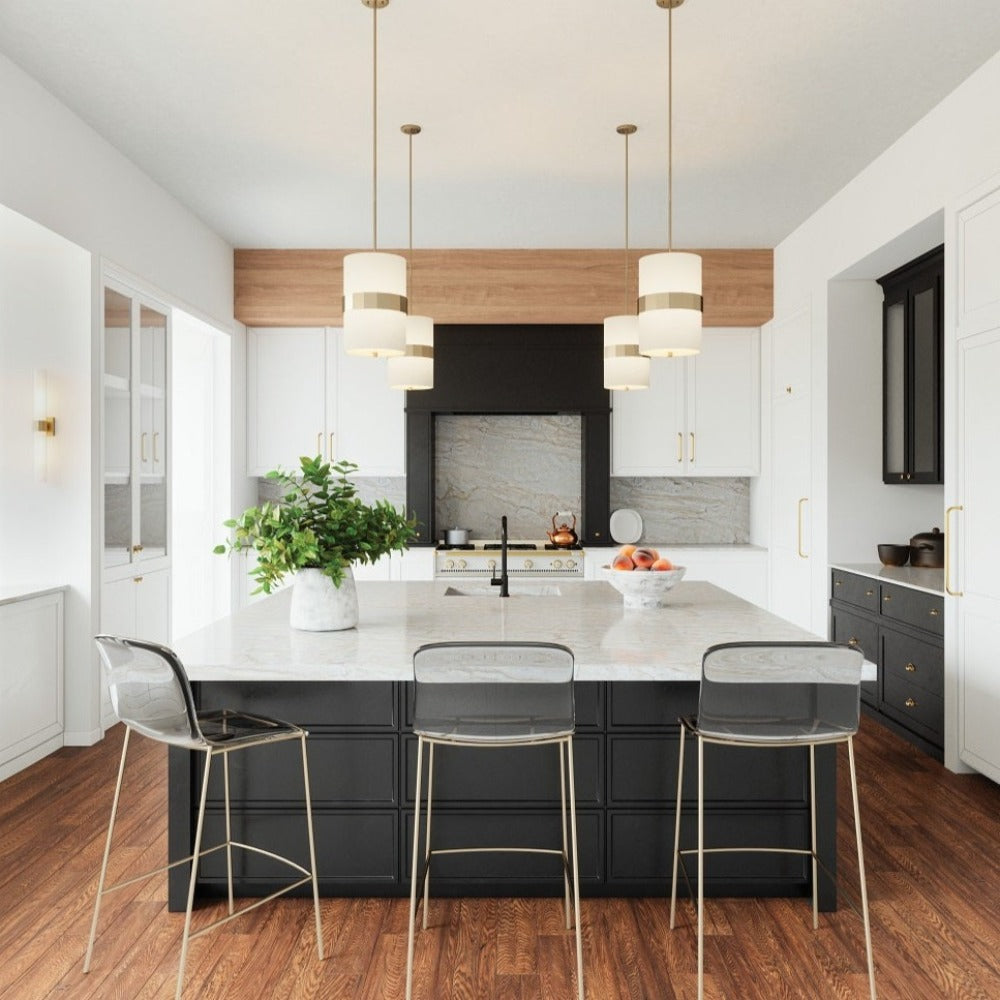

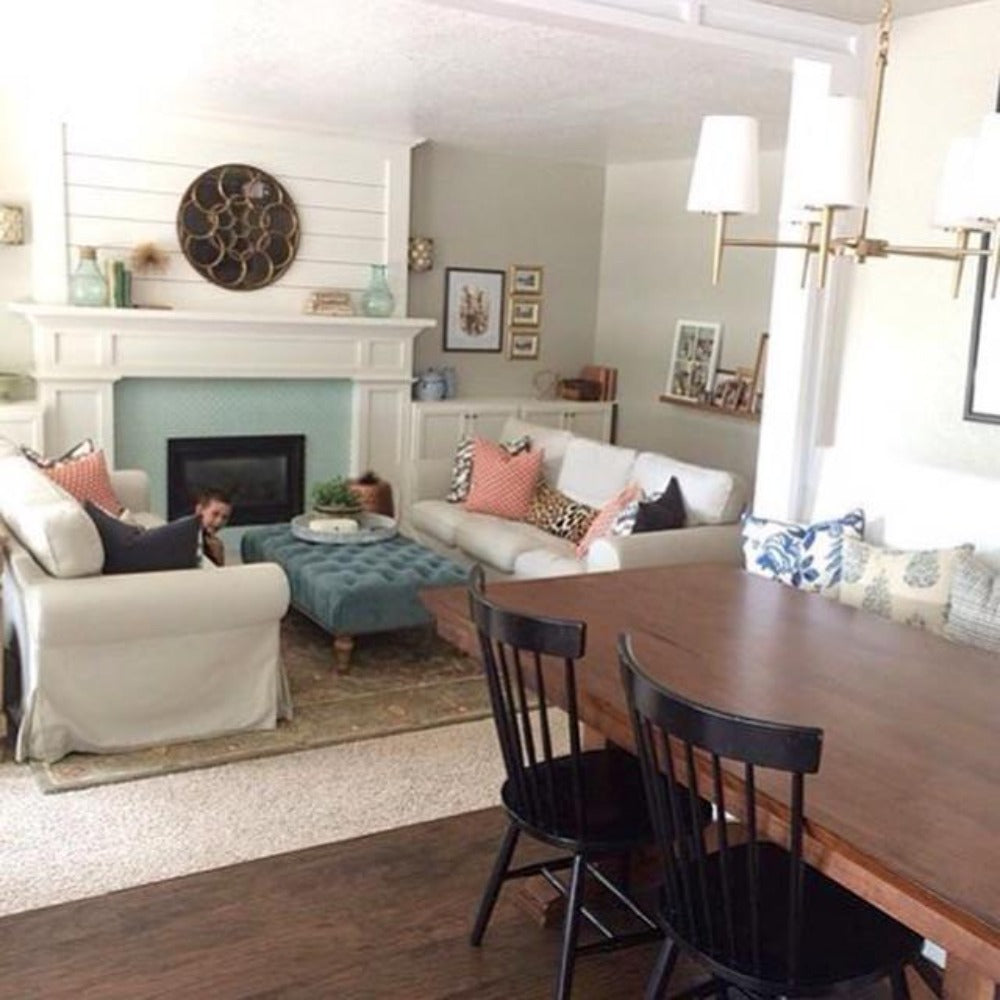

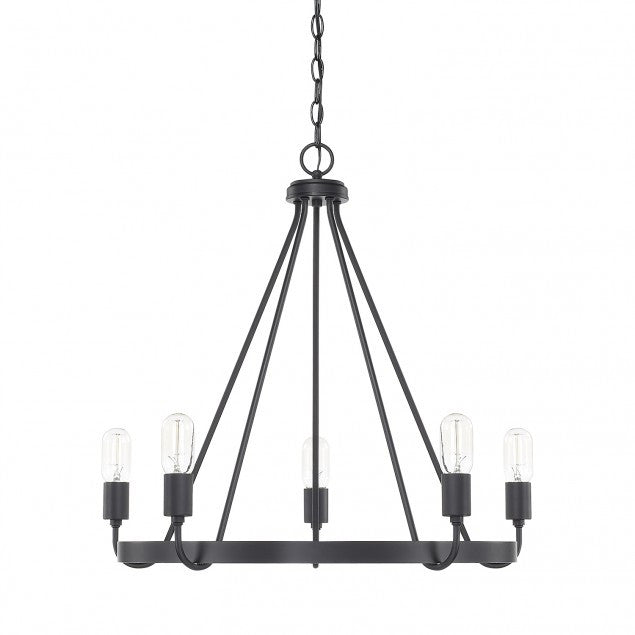

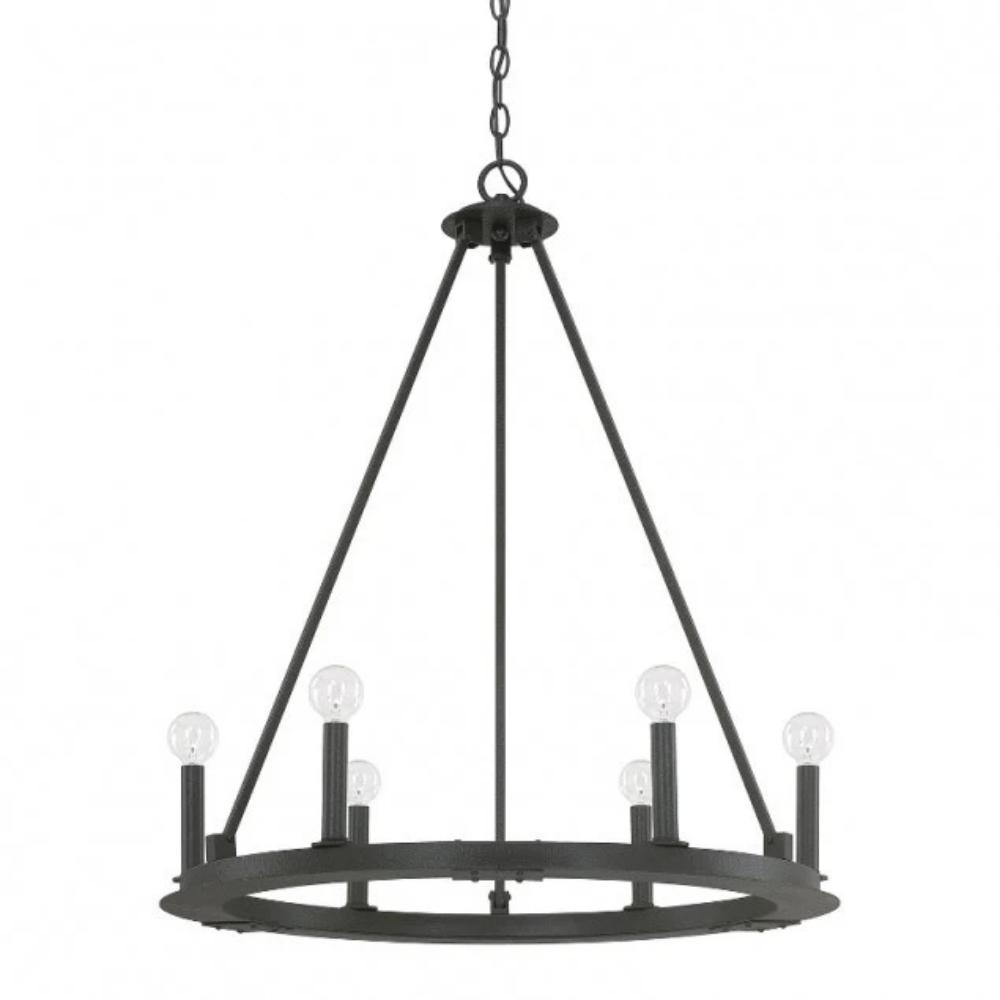

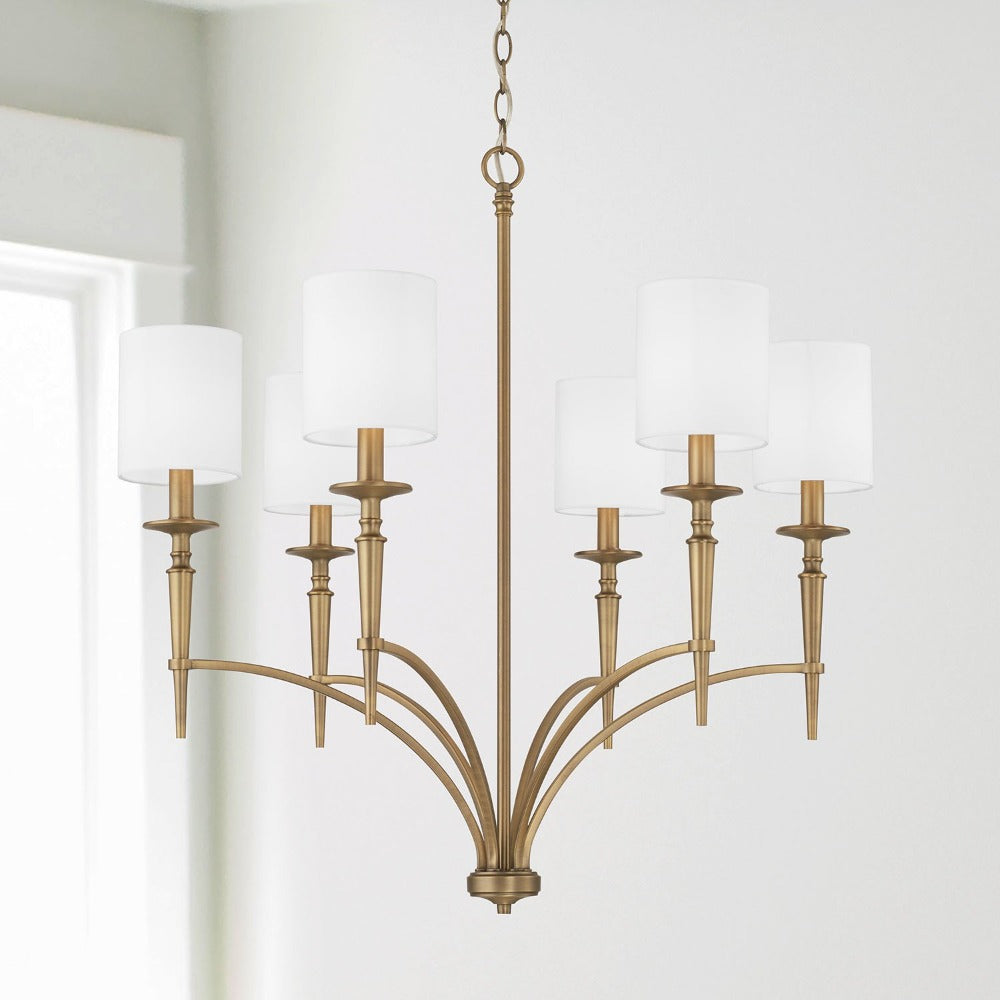

OVER A TABLE
WIDTH
Table Width | Min. Fixture Diameter | Max. Fixture Diameter | Distance between Surface and Fixture |
---|---|---|---|
3 feet | 18" | 24" | 30" - 34" |
4 feet | 24" | 32" | 30" - 34" |
5 feet | 30" | 40" | 30" - 34" |
6 feet | 36" | 48" | 30" - 34" |
7 feet | 42" | 56" | 30" - 34" |
8 feet | 48" | 64" | 30" - 34" |
HEIGHT
Room Length | Room Width | Lighting Fixture Diameter |
---|---|---|
10 feet | 10 feet | 20" |
10 feet | 12 feet | 22" |
10 feet | 14 feet | 24" |
10 feet | 16 feet | 26" |
8 feet | 10 feet | 18" |
8 feet | 12 feet | 20" |
8 feet | 14 feet | 22" |
8 feet | 16 feet | 24" |
12 feet | 12 feet | 24" |
12 feet | 14 feet | 26" |
12 feet | 16 feet | 28" |
14 feet | 14 feet | 28" |
16 feet | 16 feet | 32" |

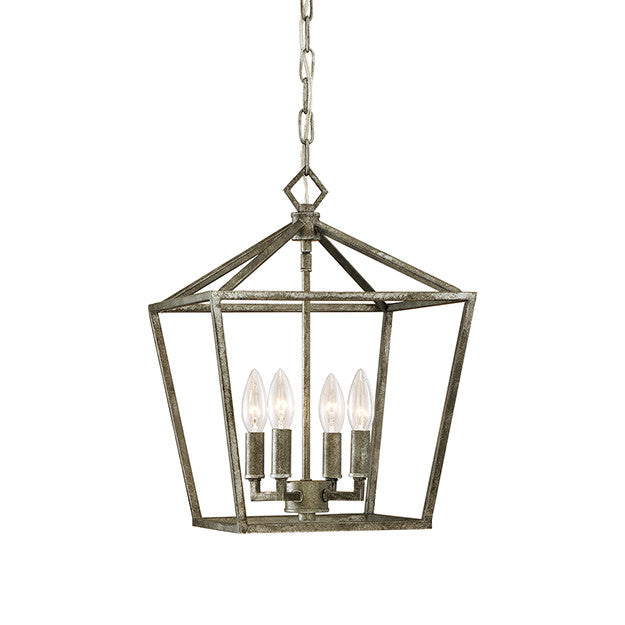

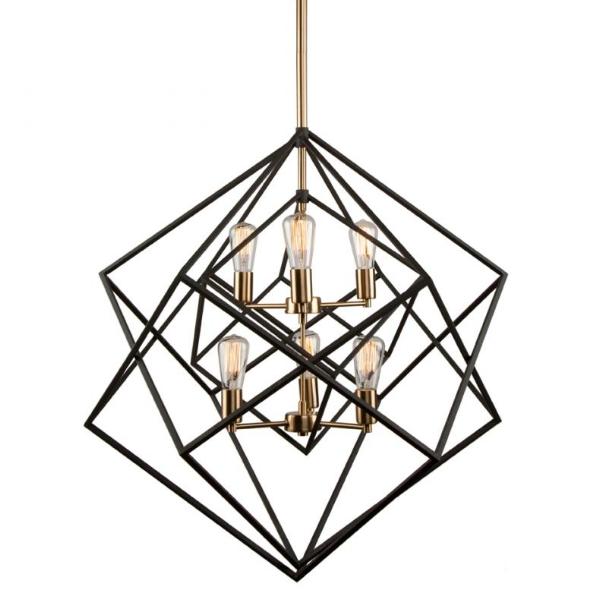

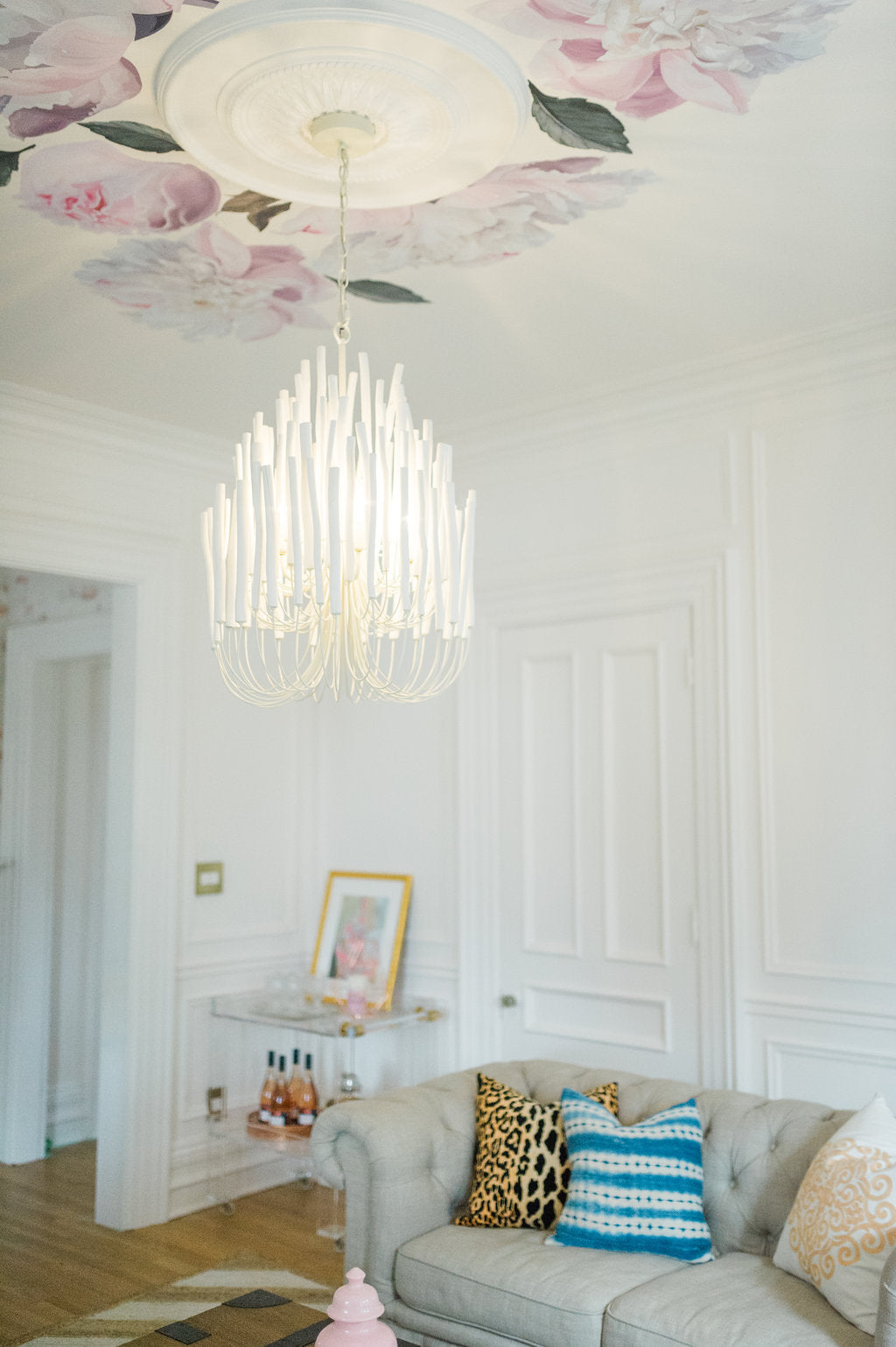

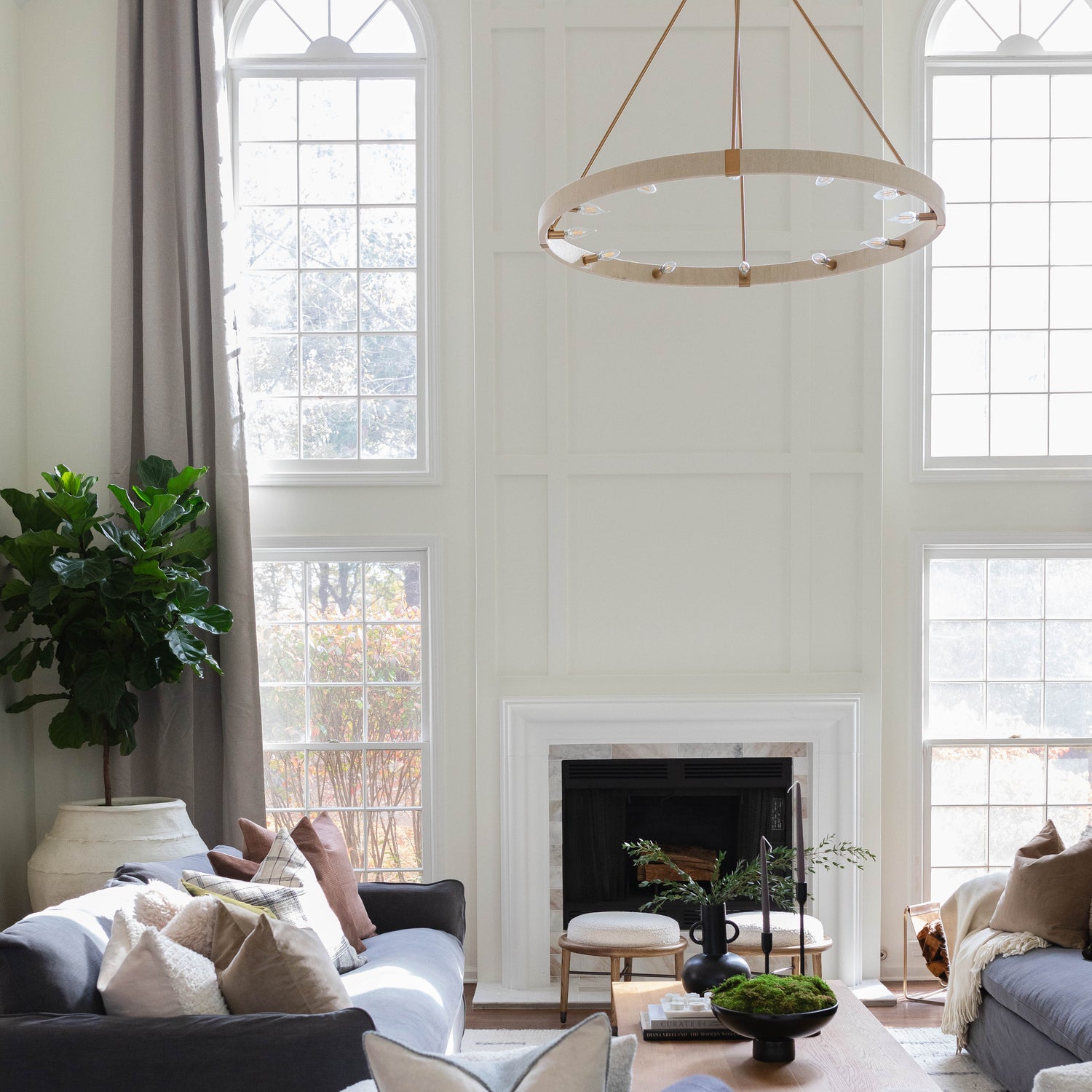

NOT OVER A TABLE
Room Height | Min. Fixture Height | Max. Fixture Height |
---|---|---|
8 feet | 20" | 24" |
9 feet | 22.5" | 27" |
10 feet | 25" | 30" |
11 feet | 27.5" | 33" |
12 feet | 30" | 36" |
13 feet | 32.5" | 39" |
14 feet | 35" | 42" |
SCONE

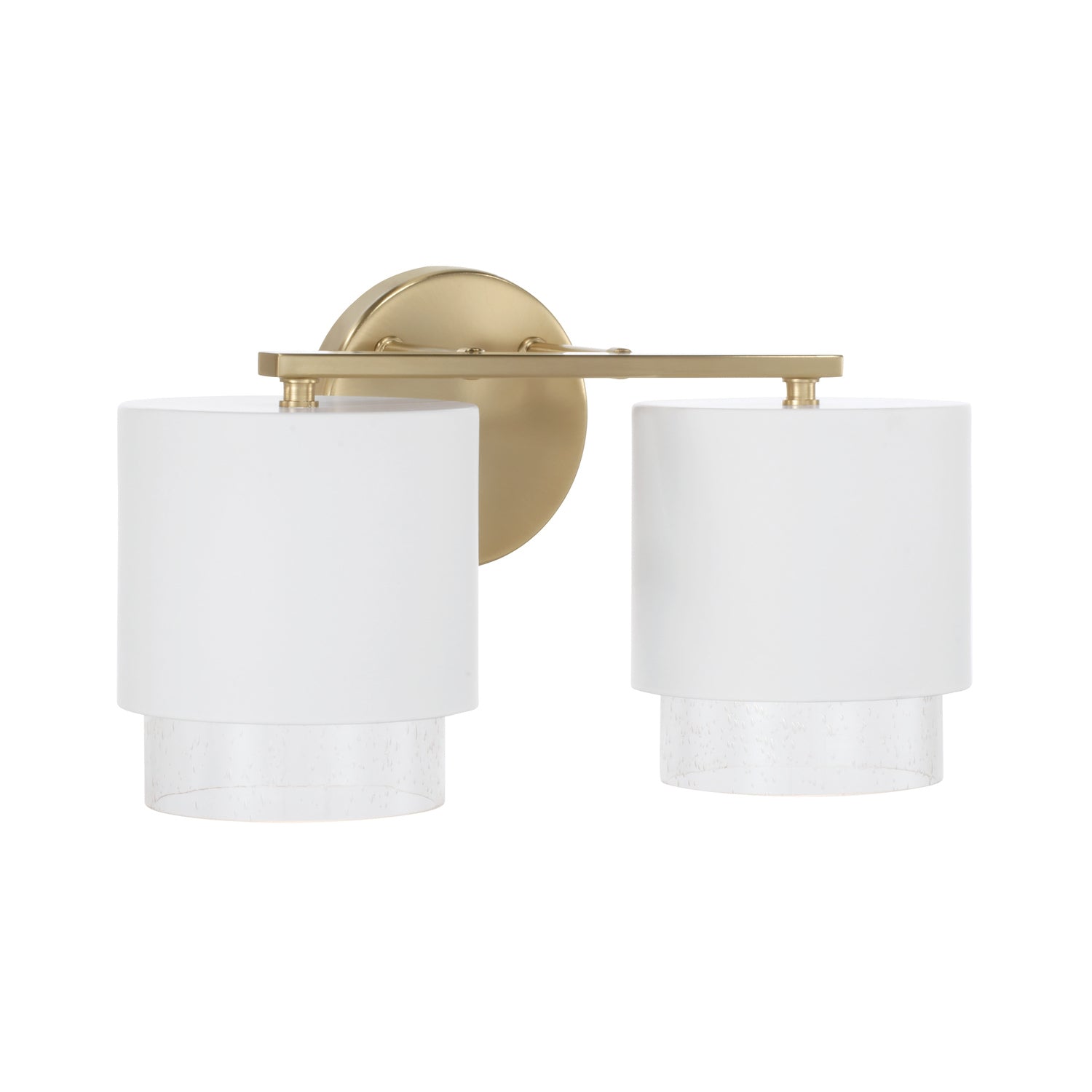

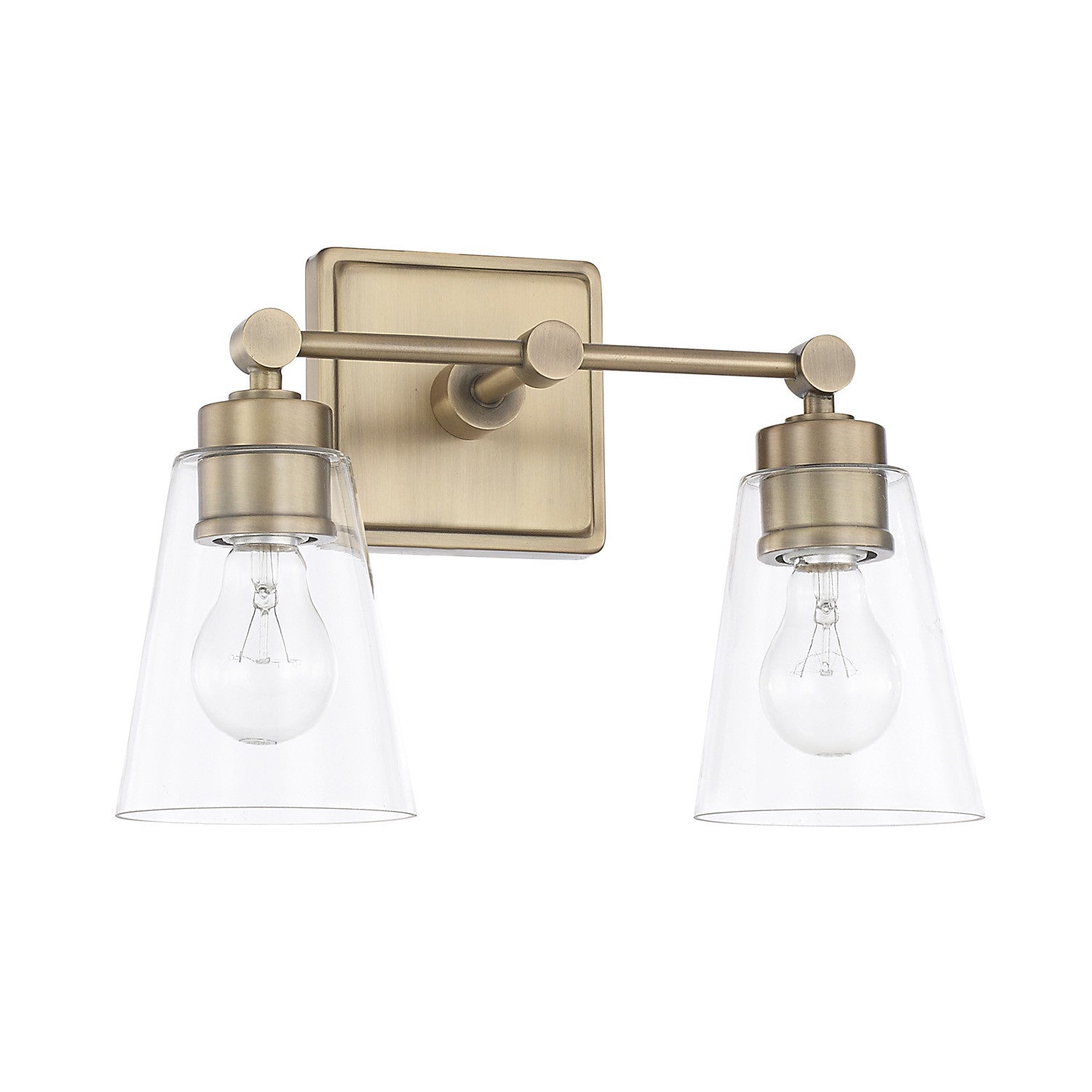

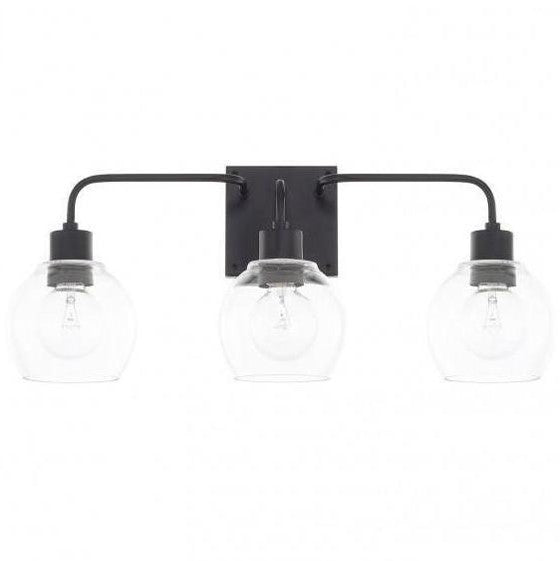

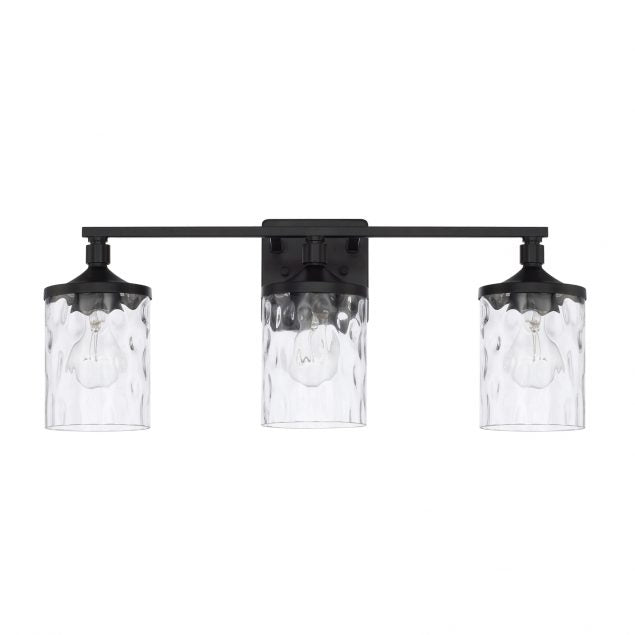

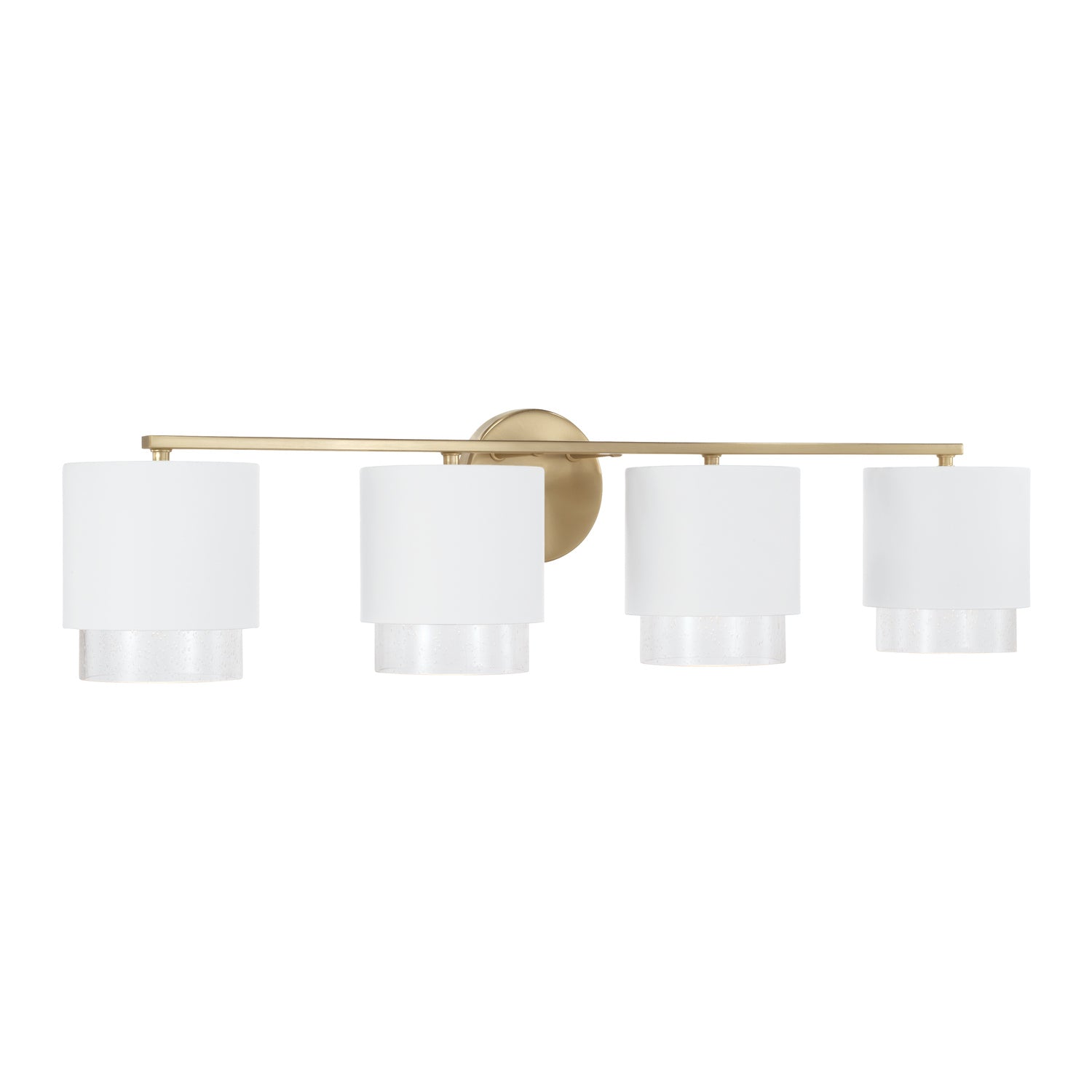

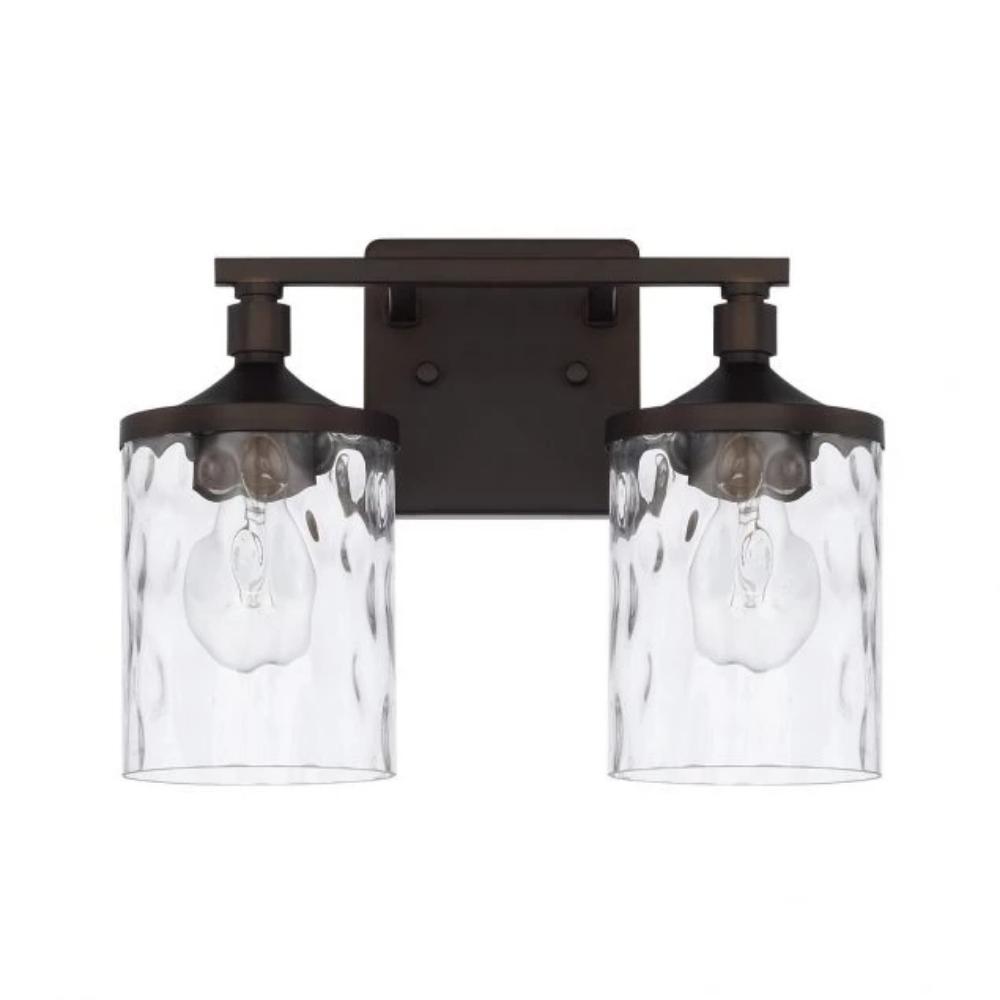

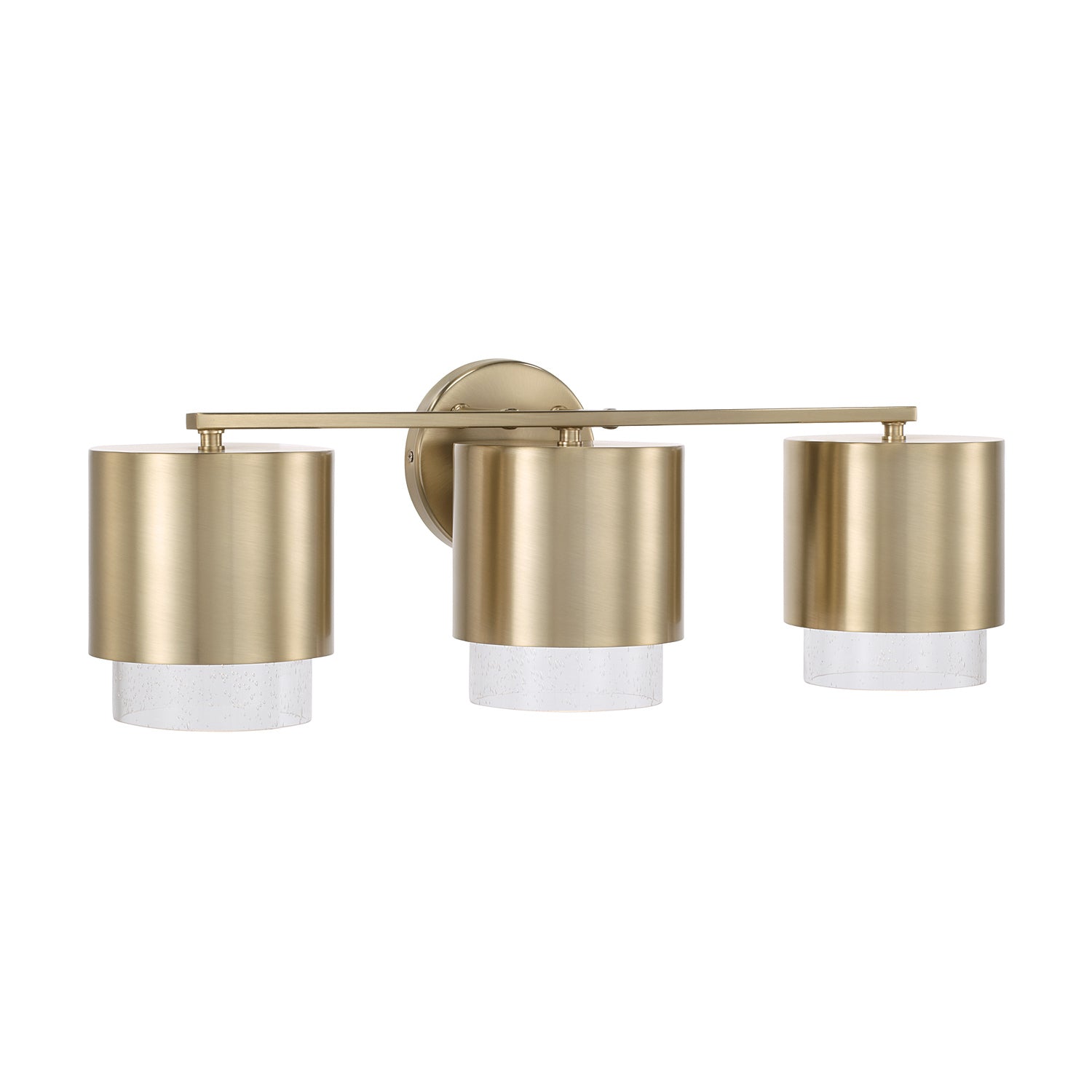

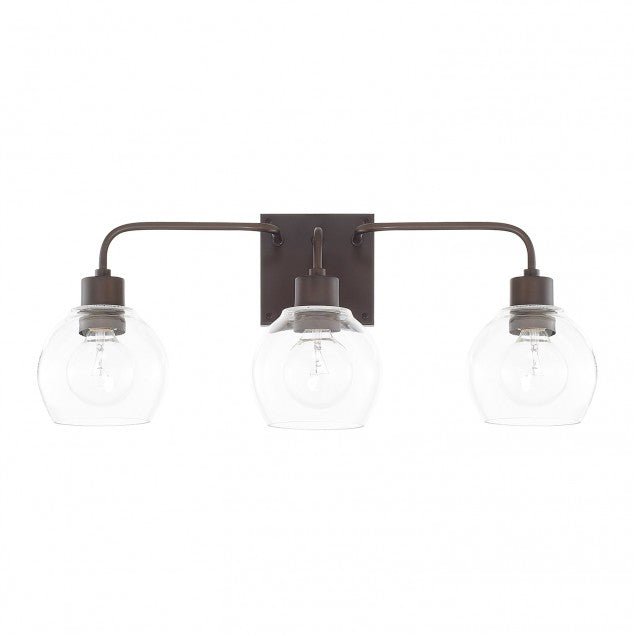

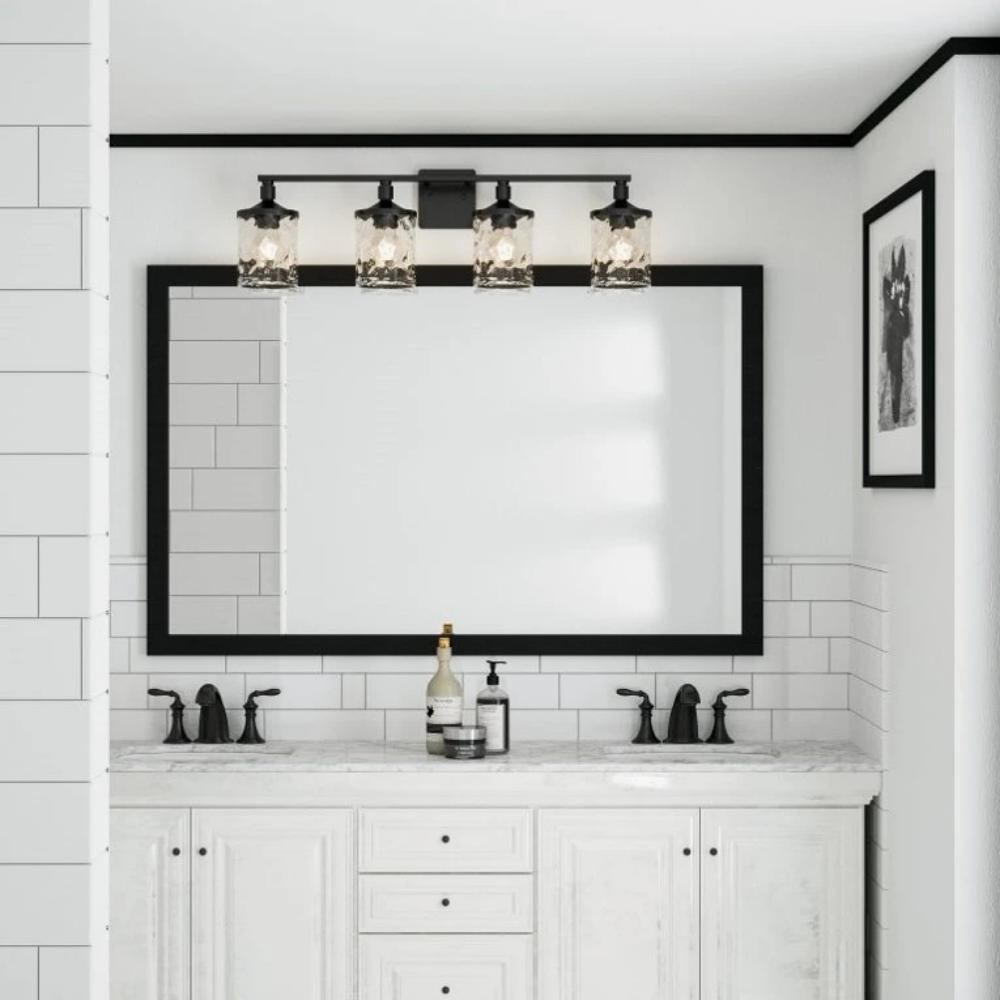

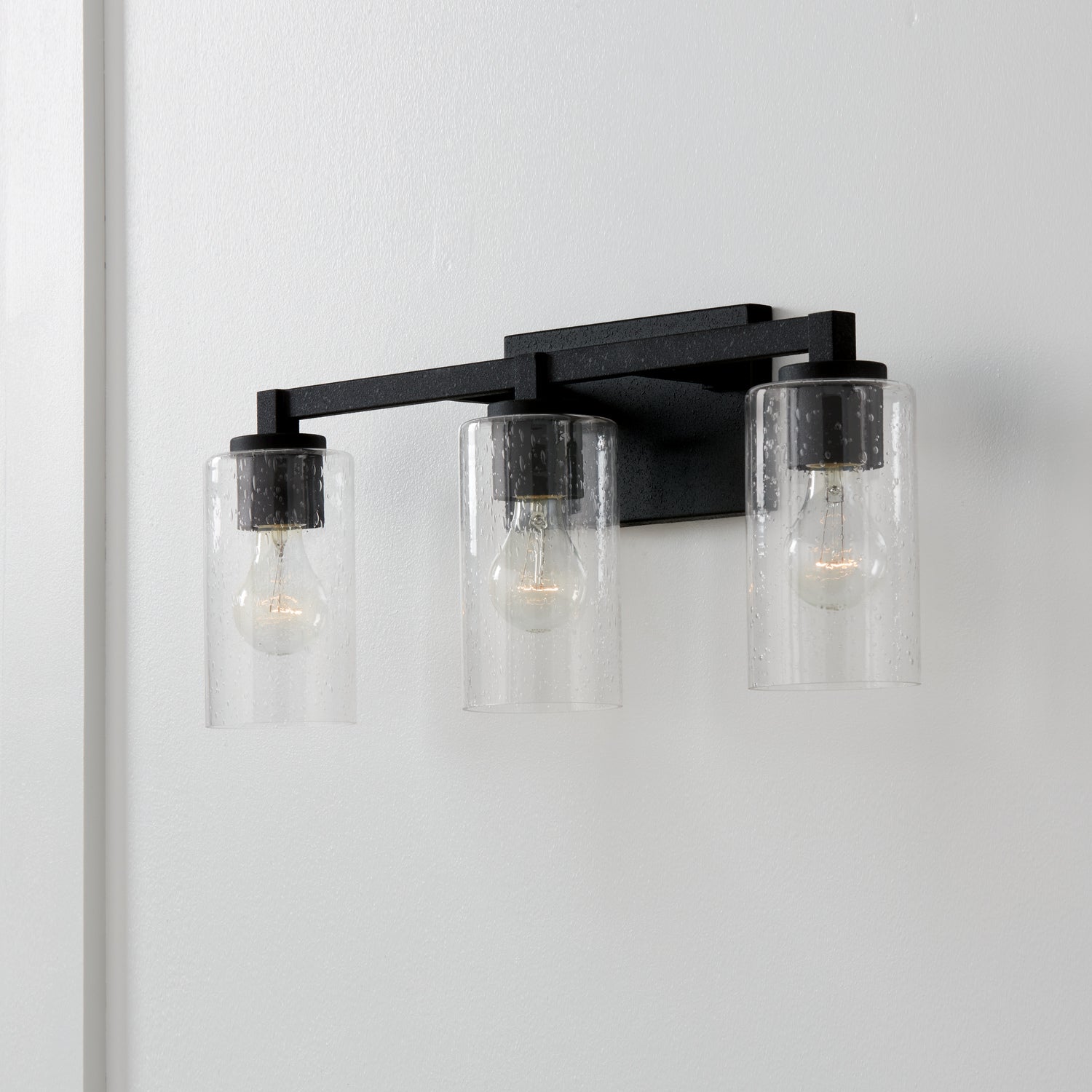

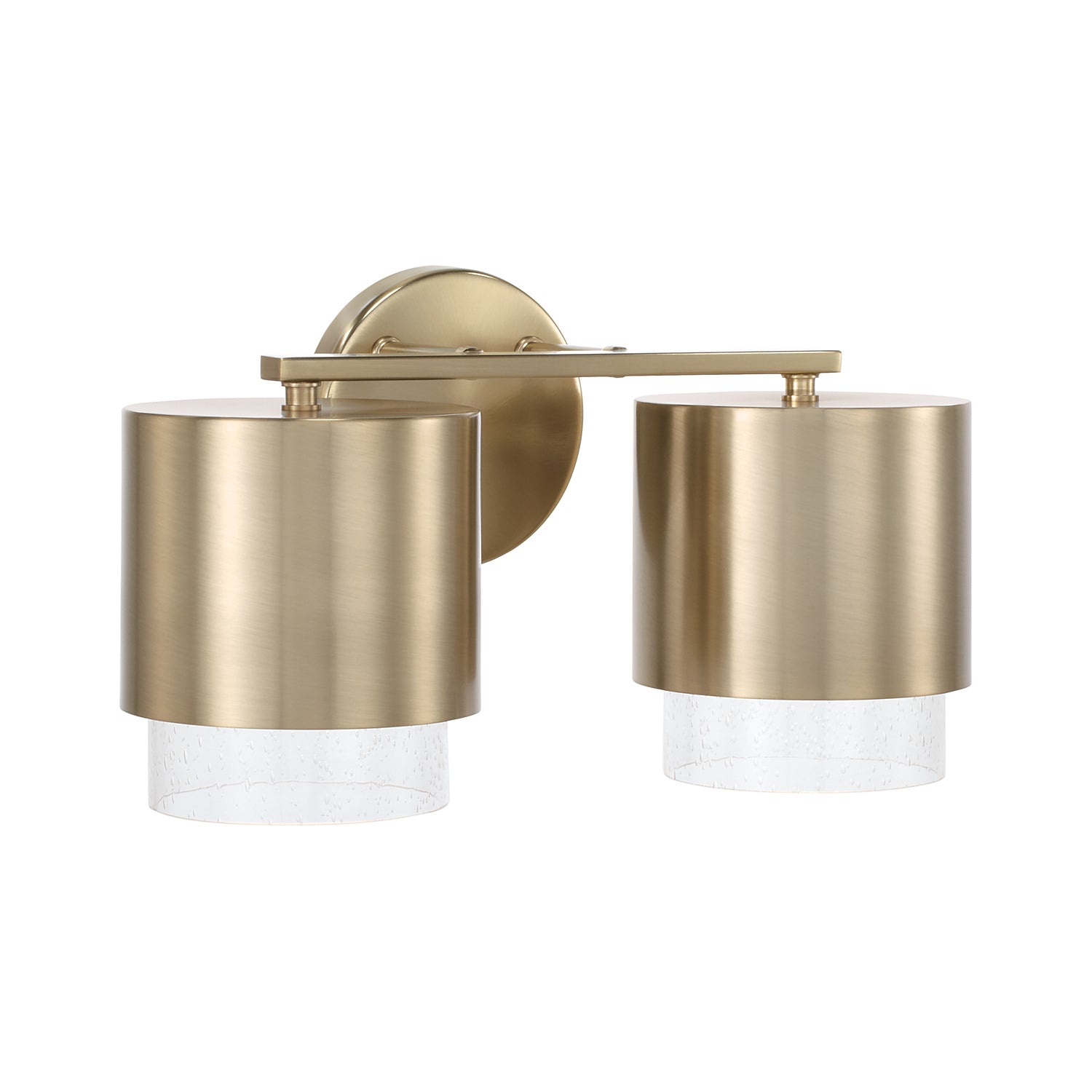

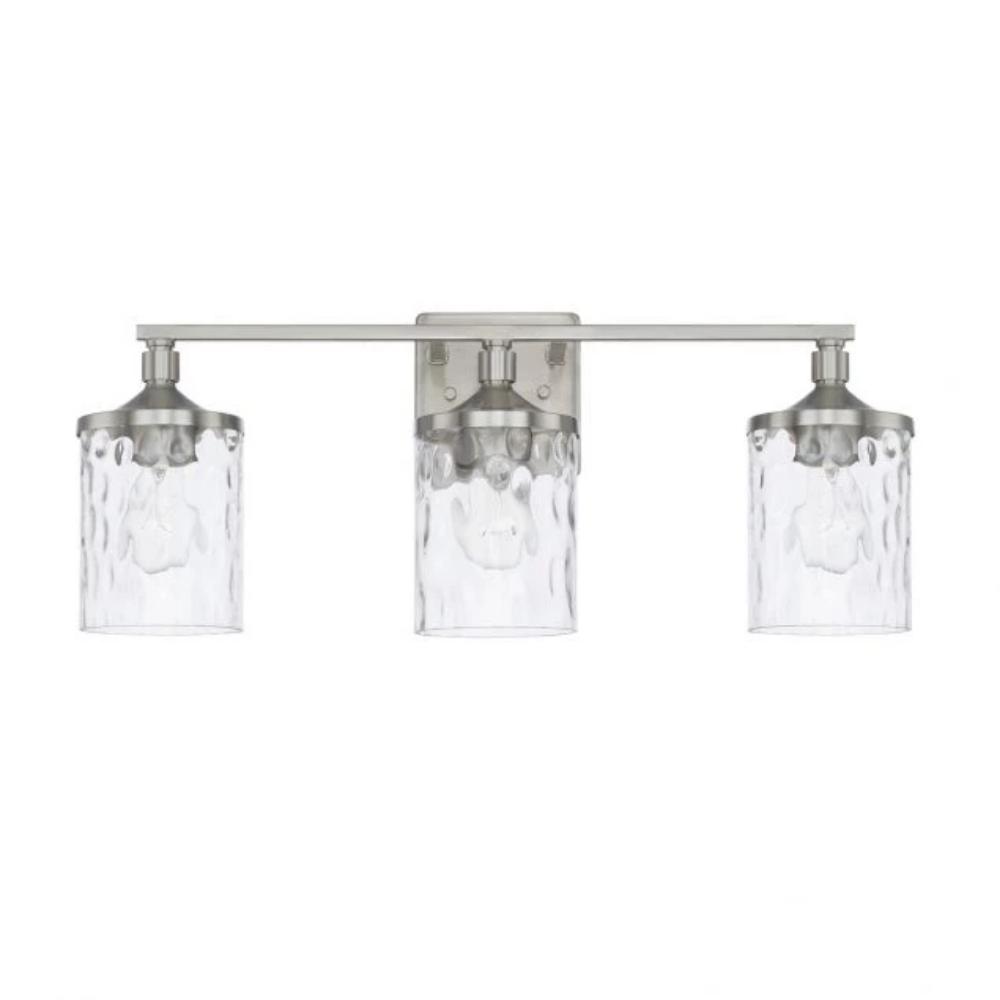

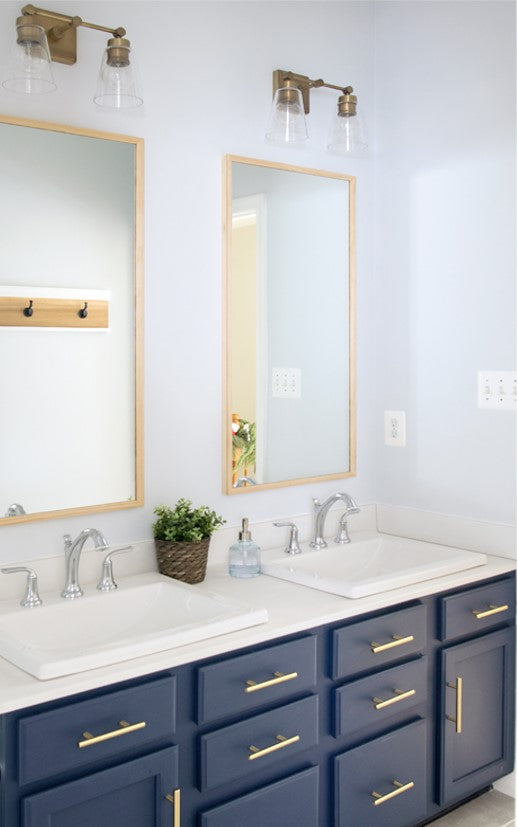

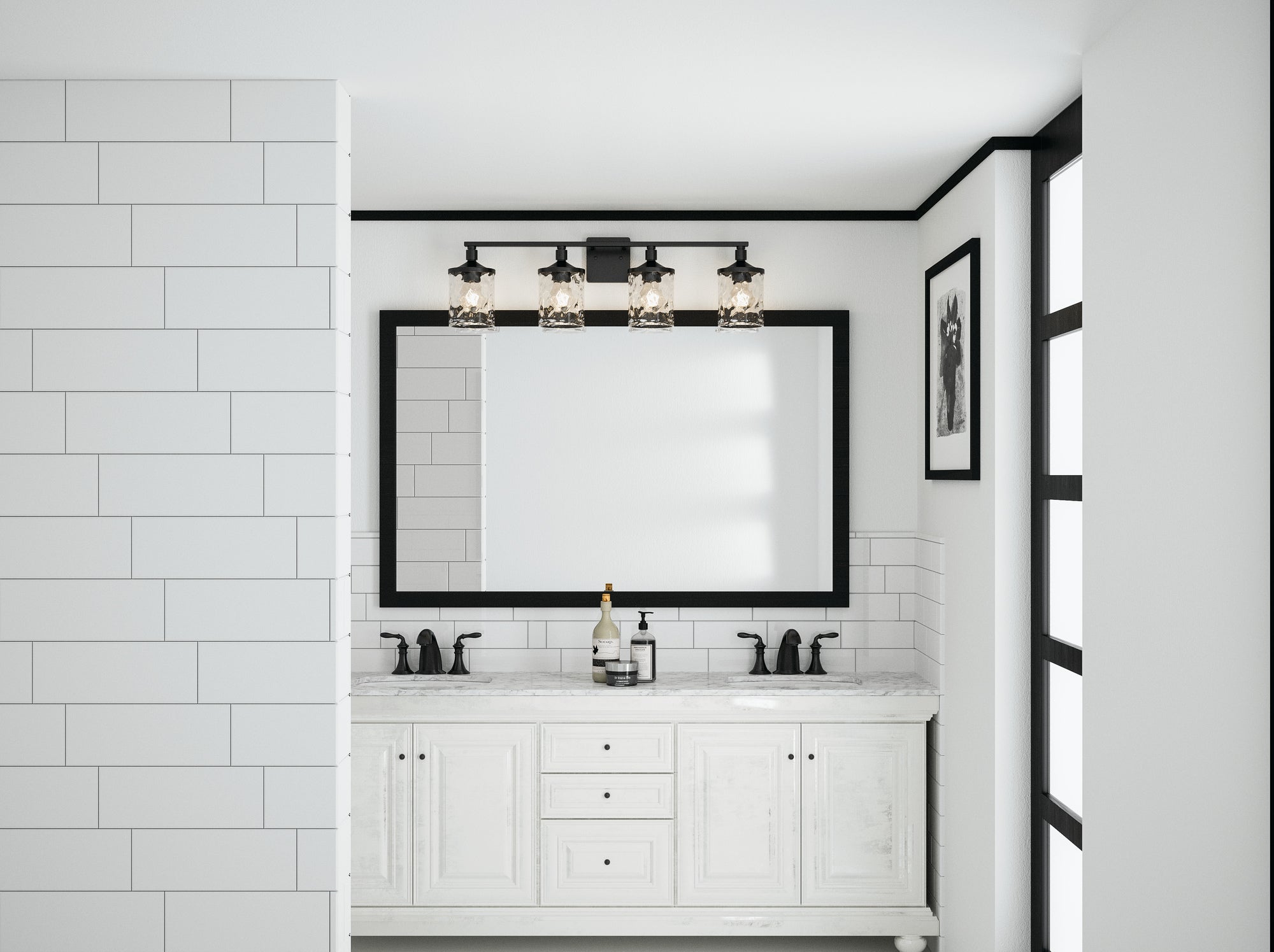

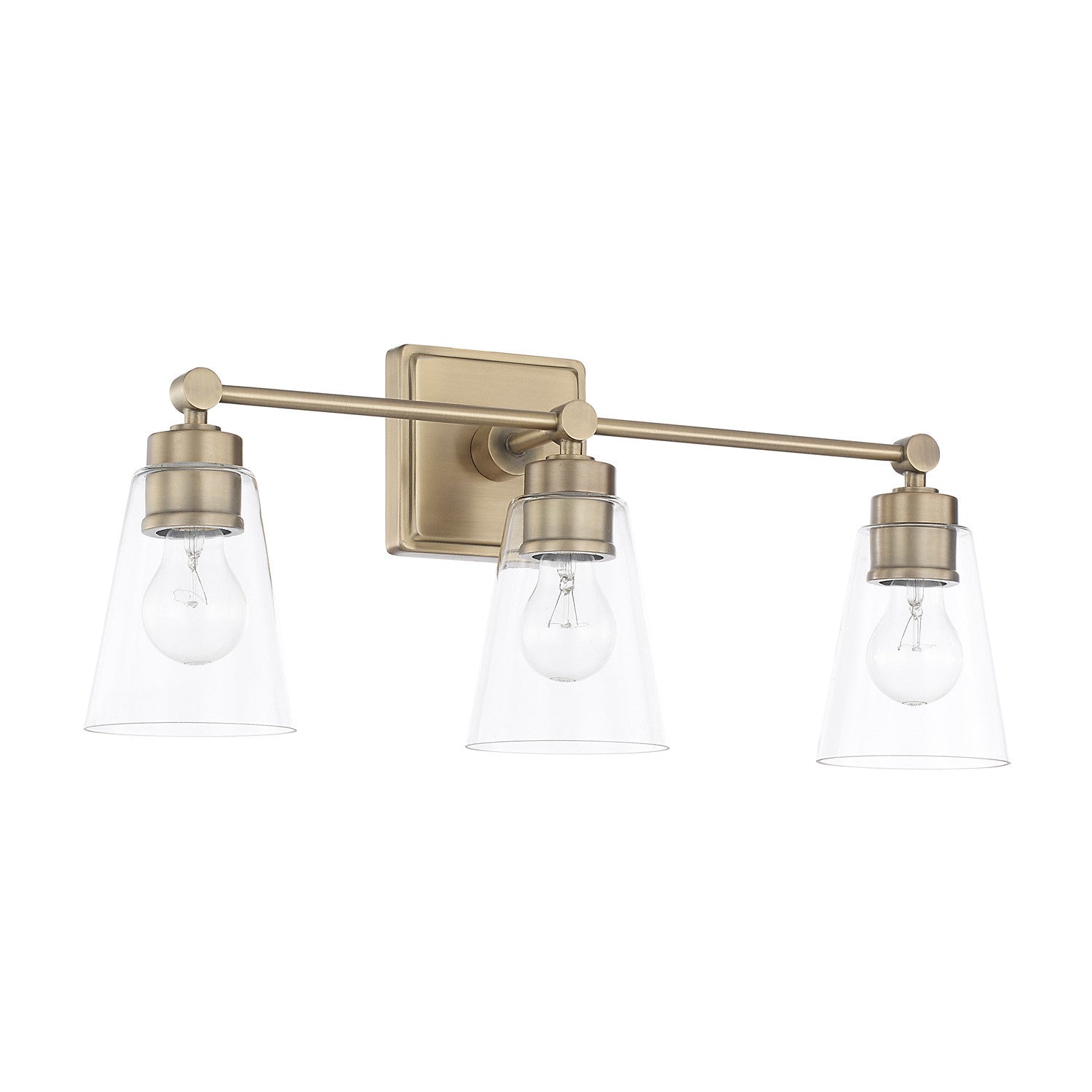

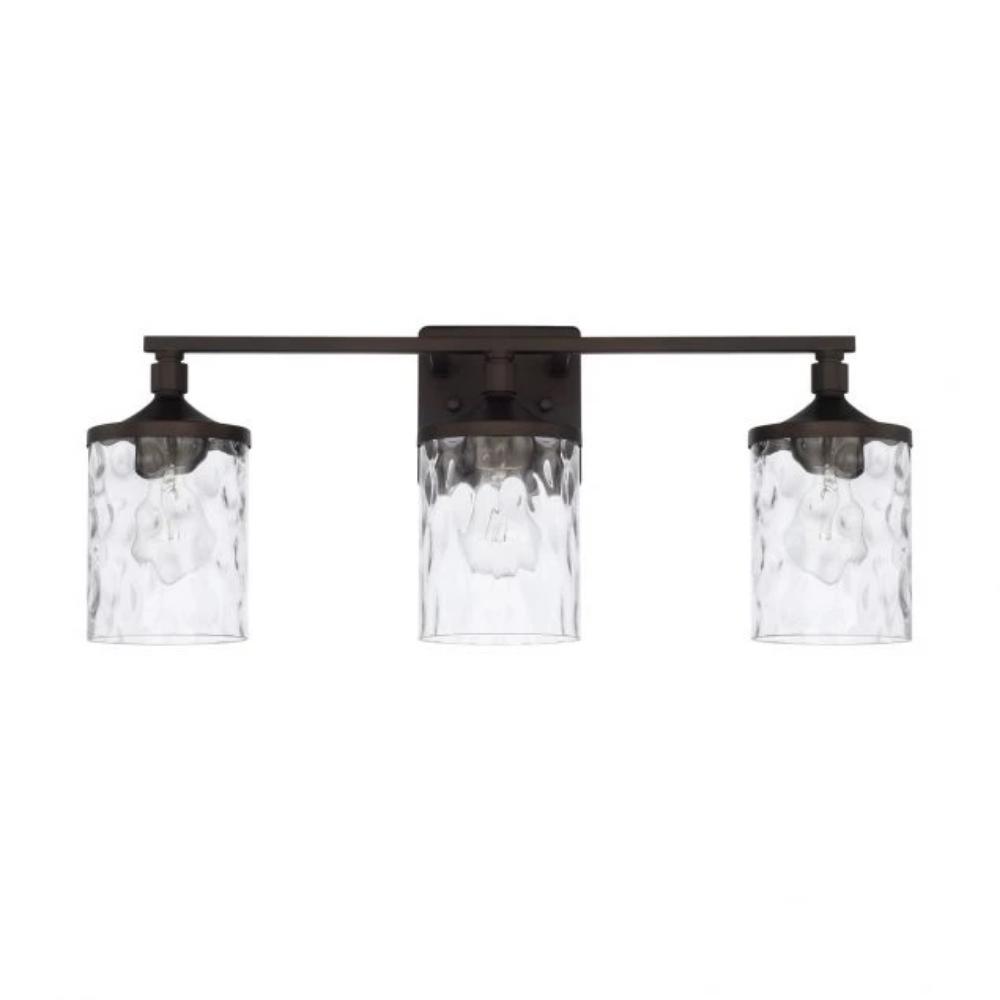

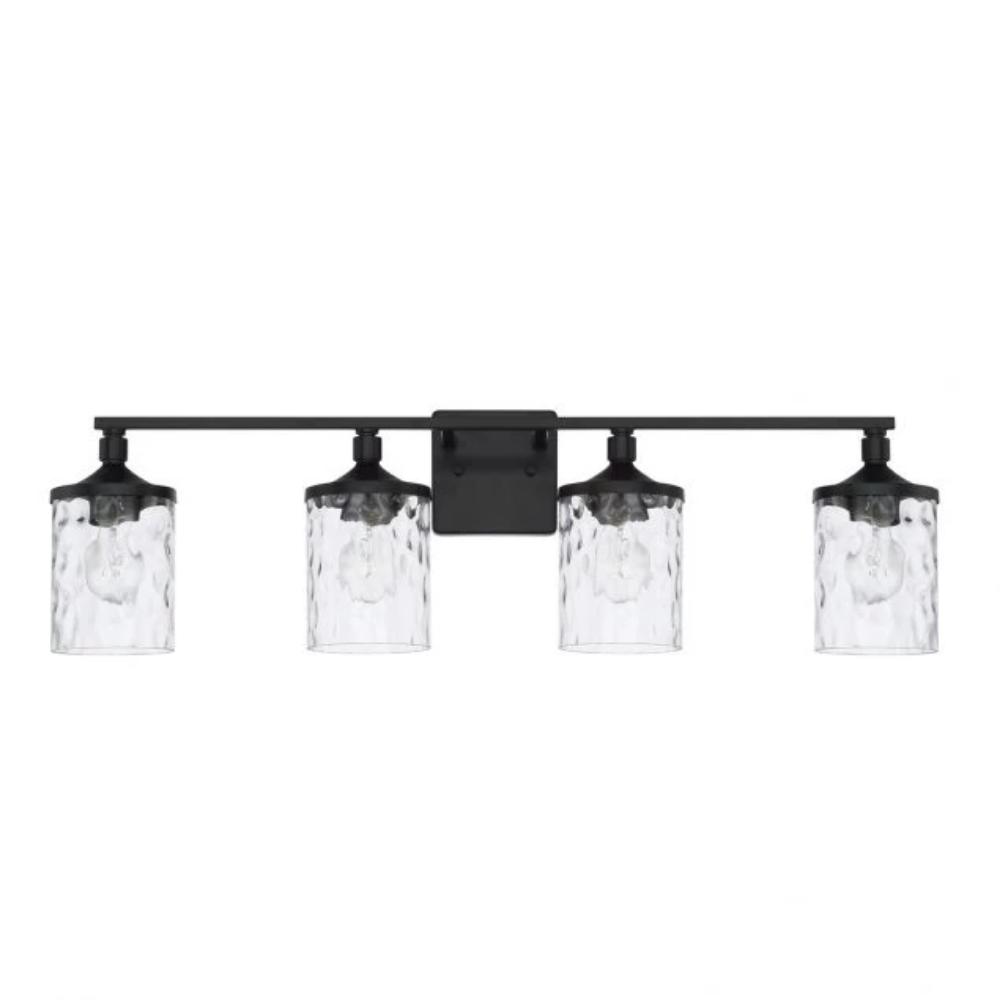

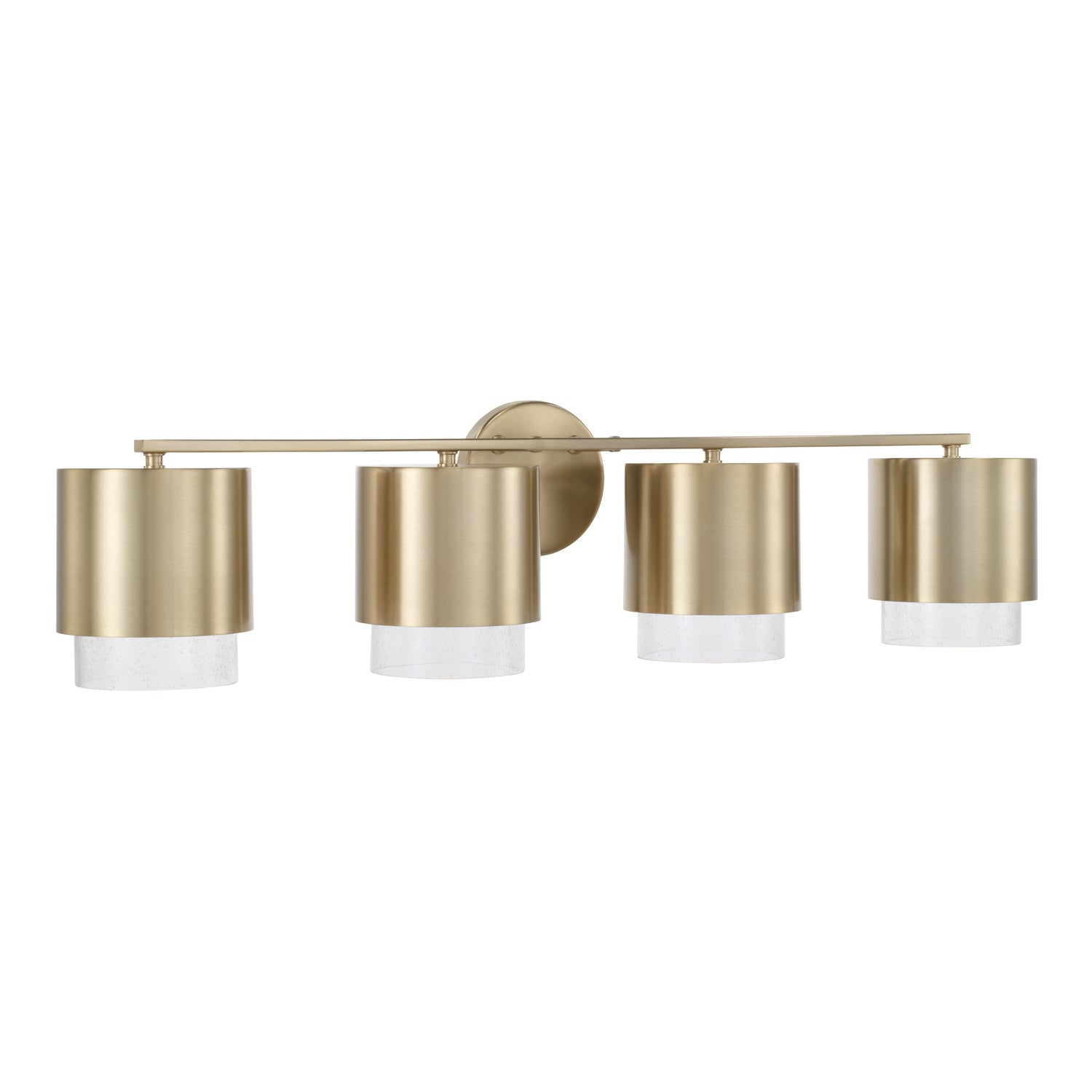

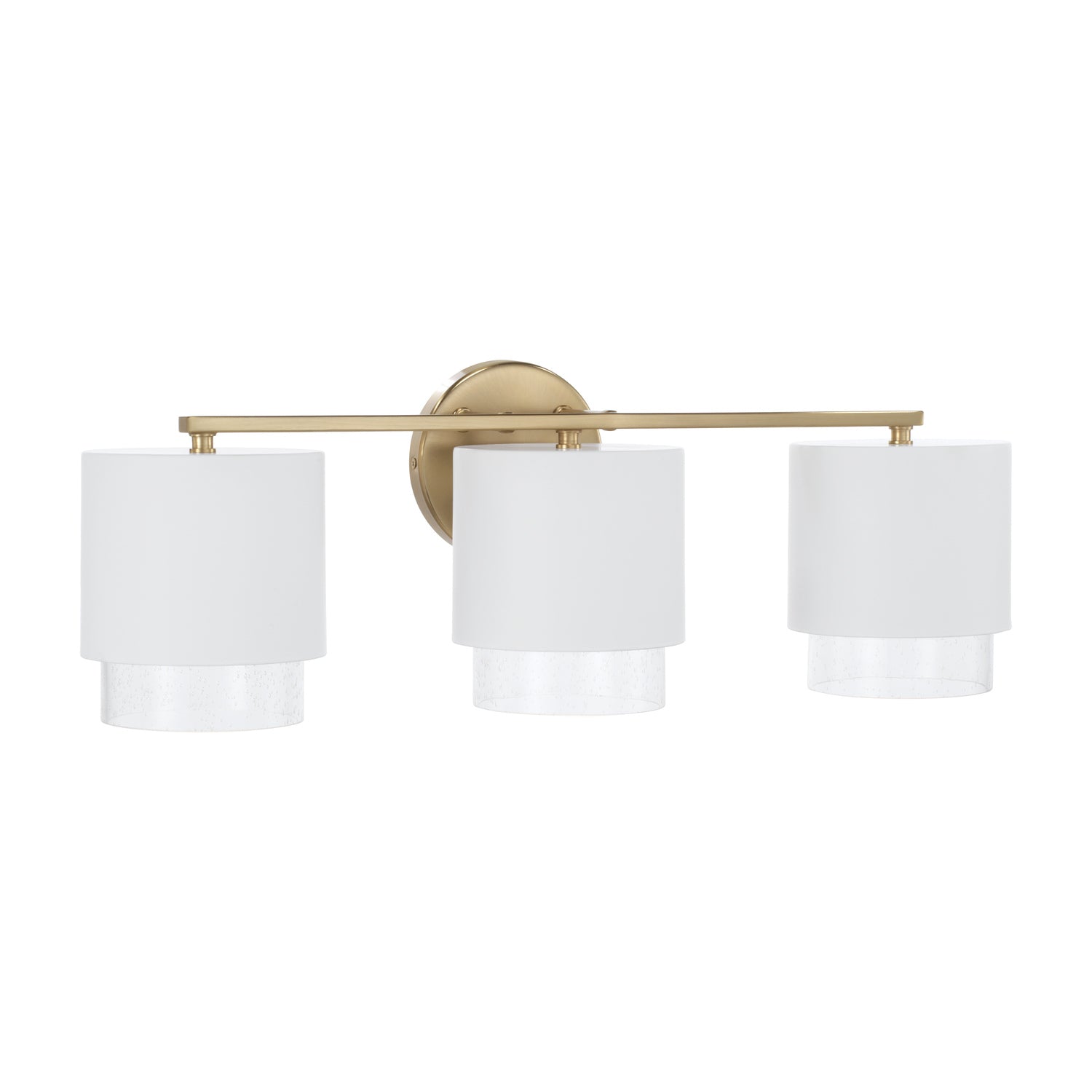

BATHROOM (SCONCE)
Mirror Length | Distance Needed Between Fixtures |
---|---|
24" | 36" |
28" | 40" |
30" | 42" |
32" | 44" |
36" | 48" |
40" | 52" |

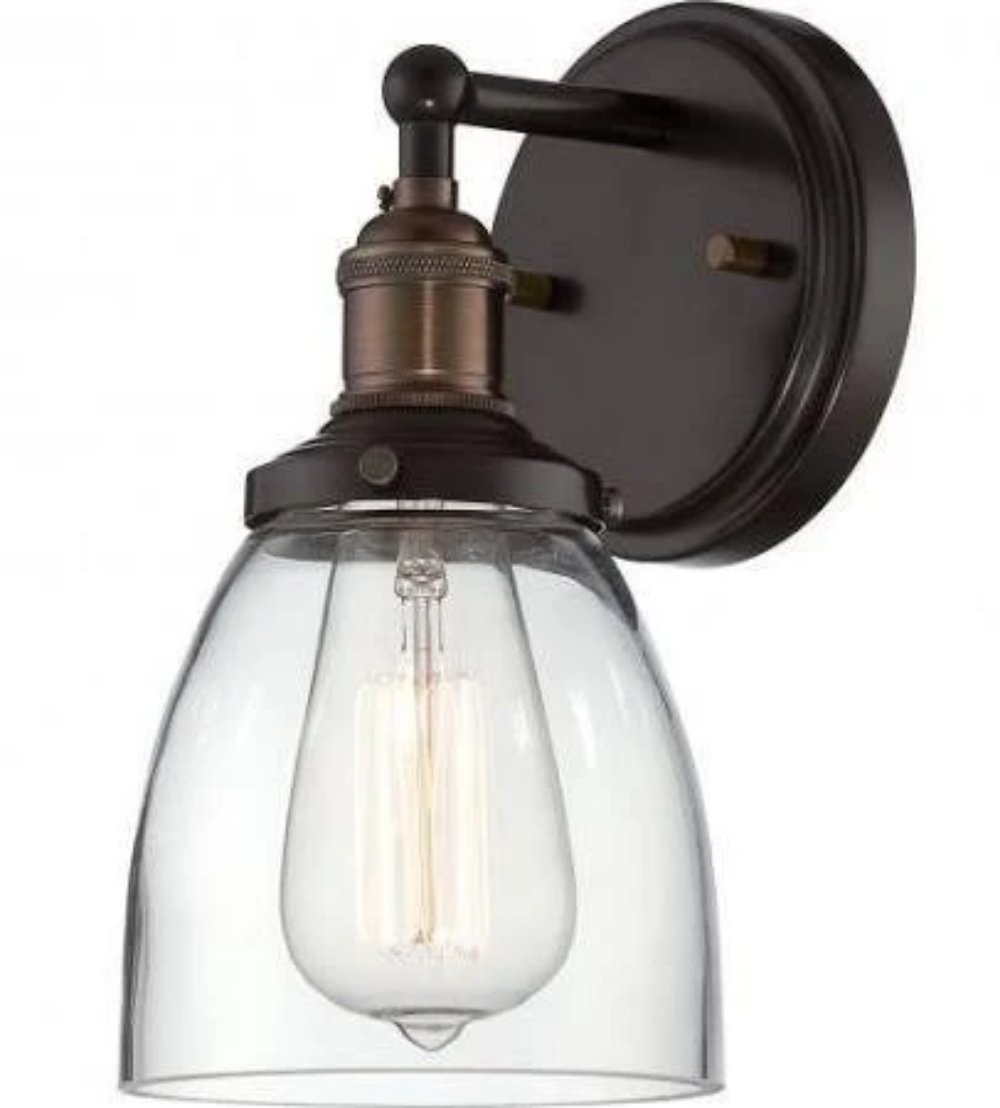

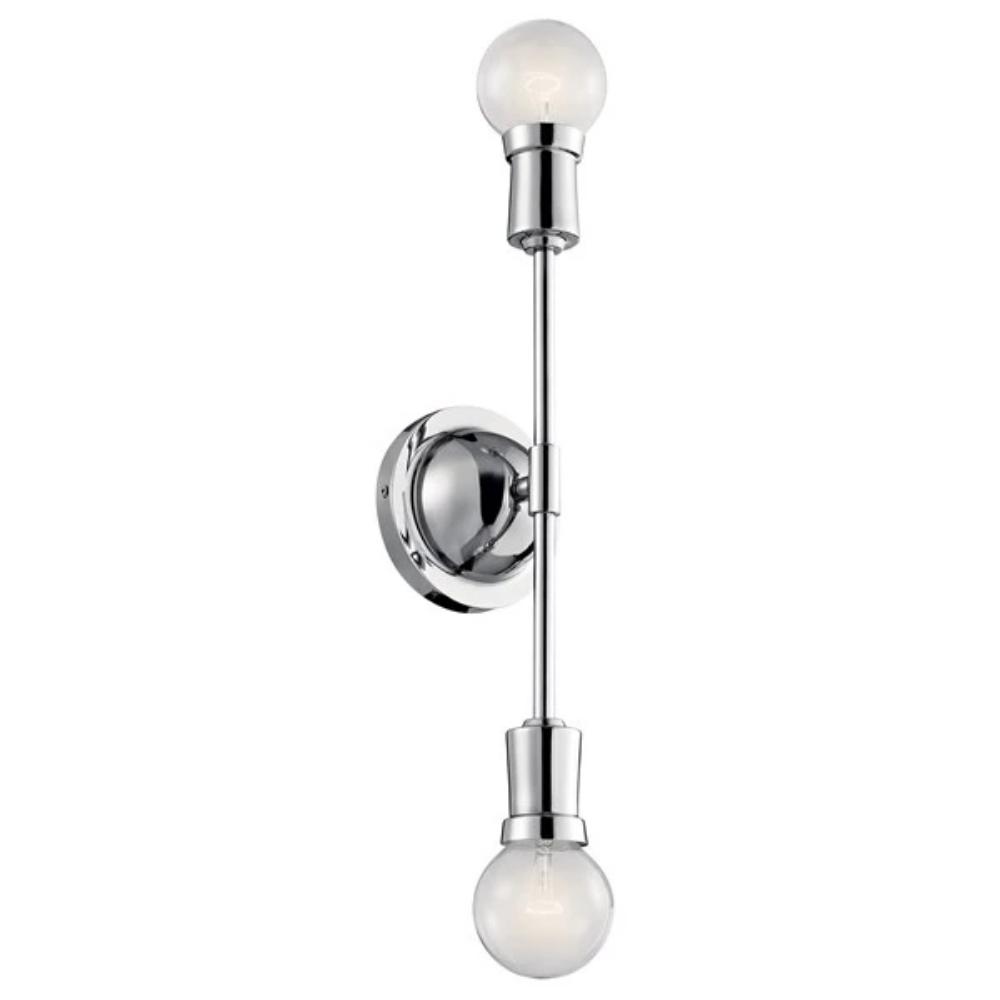

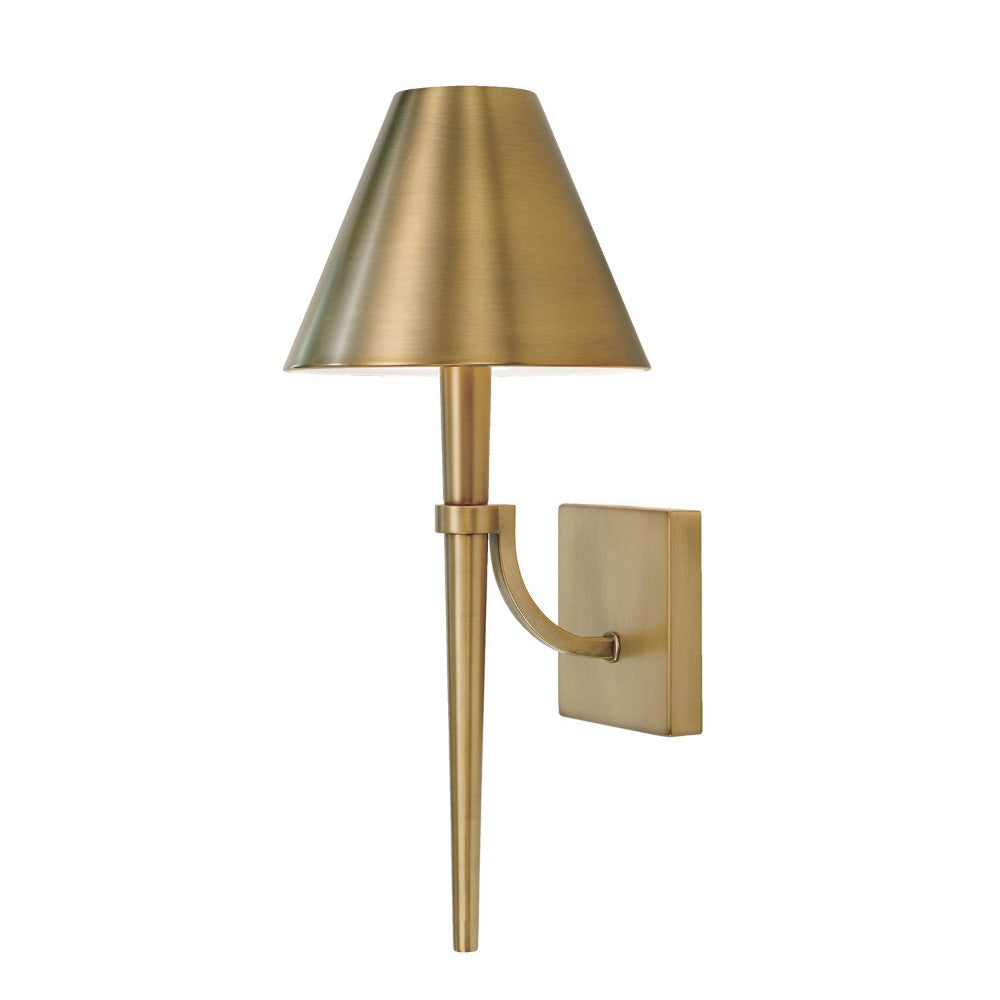

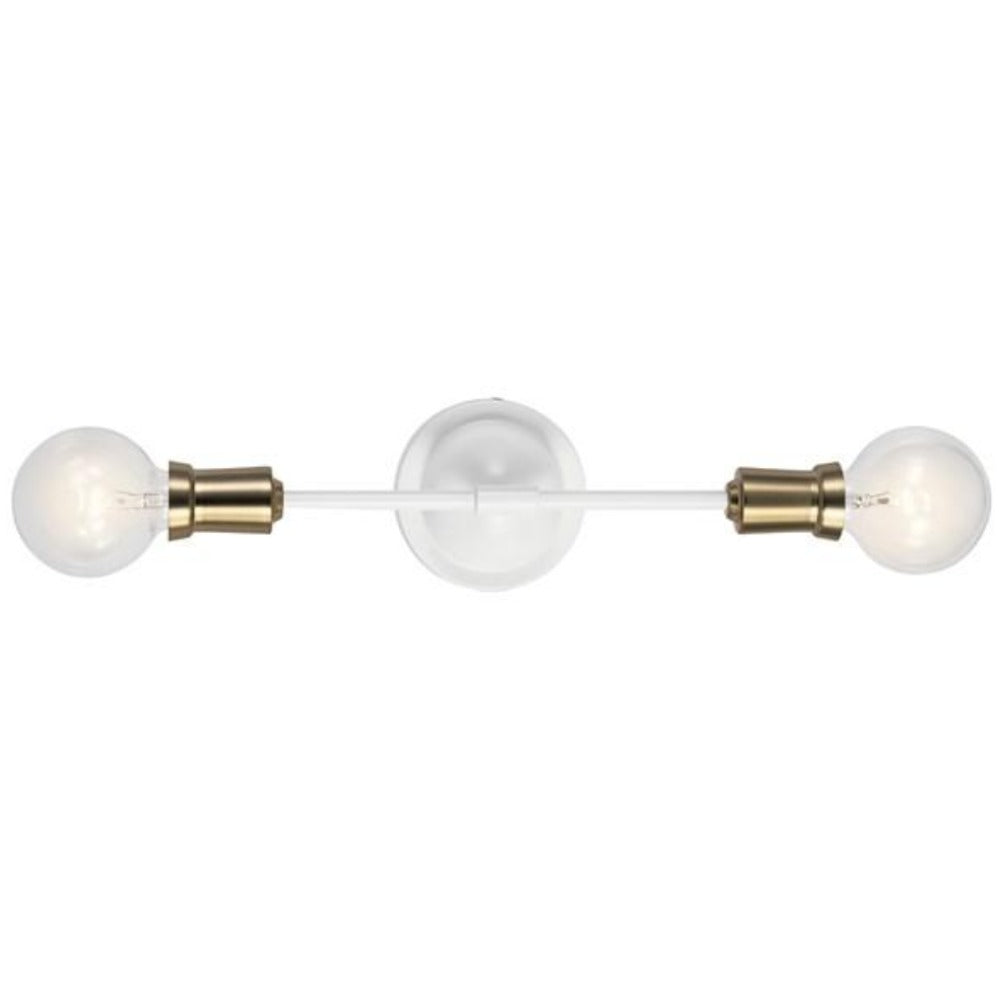

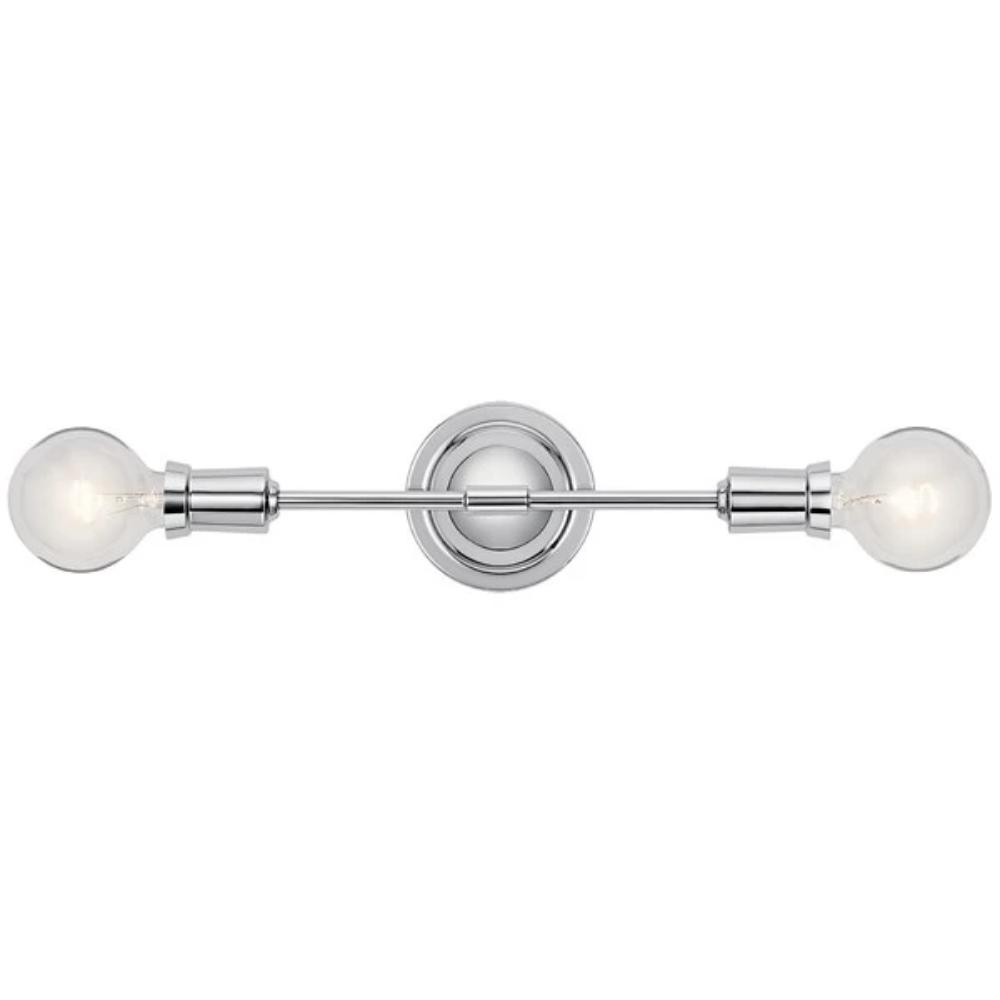

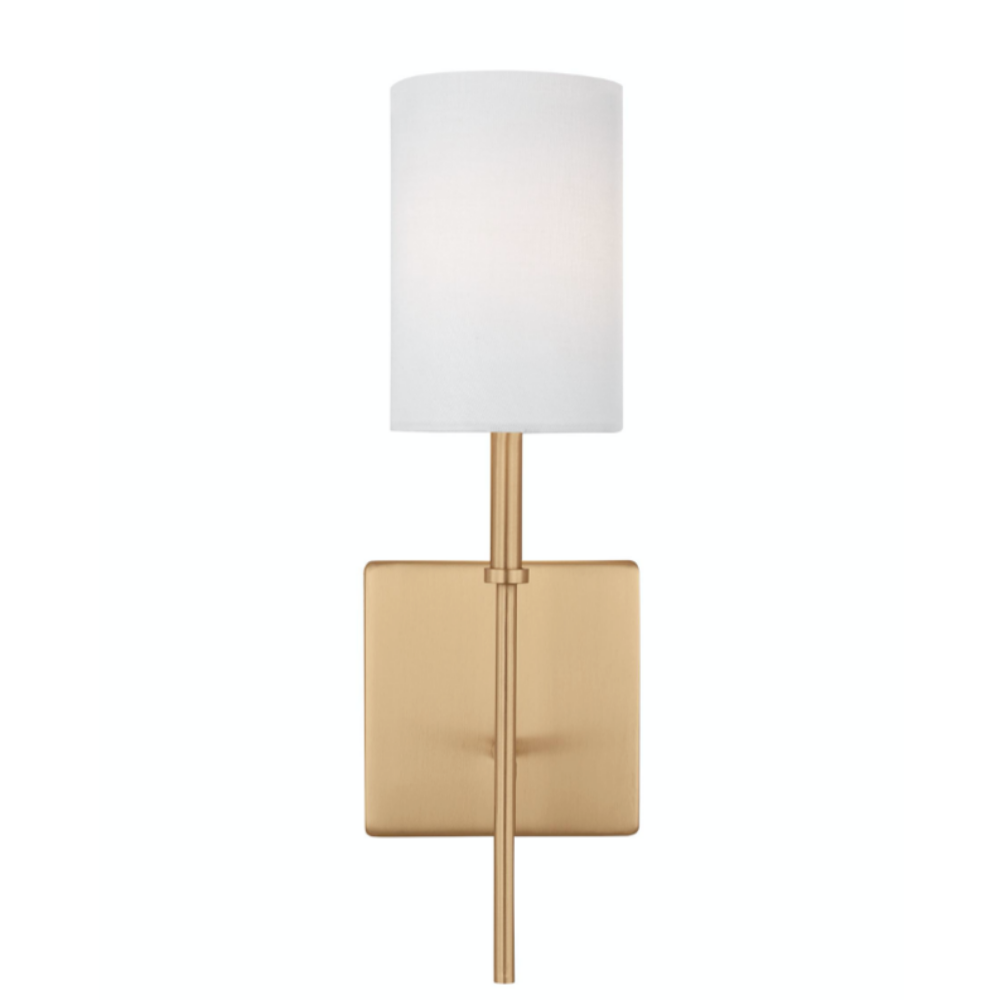

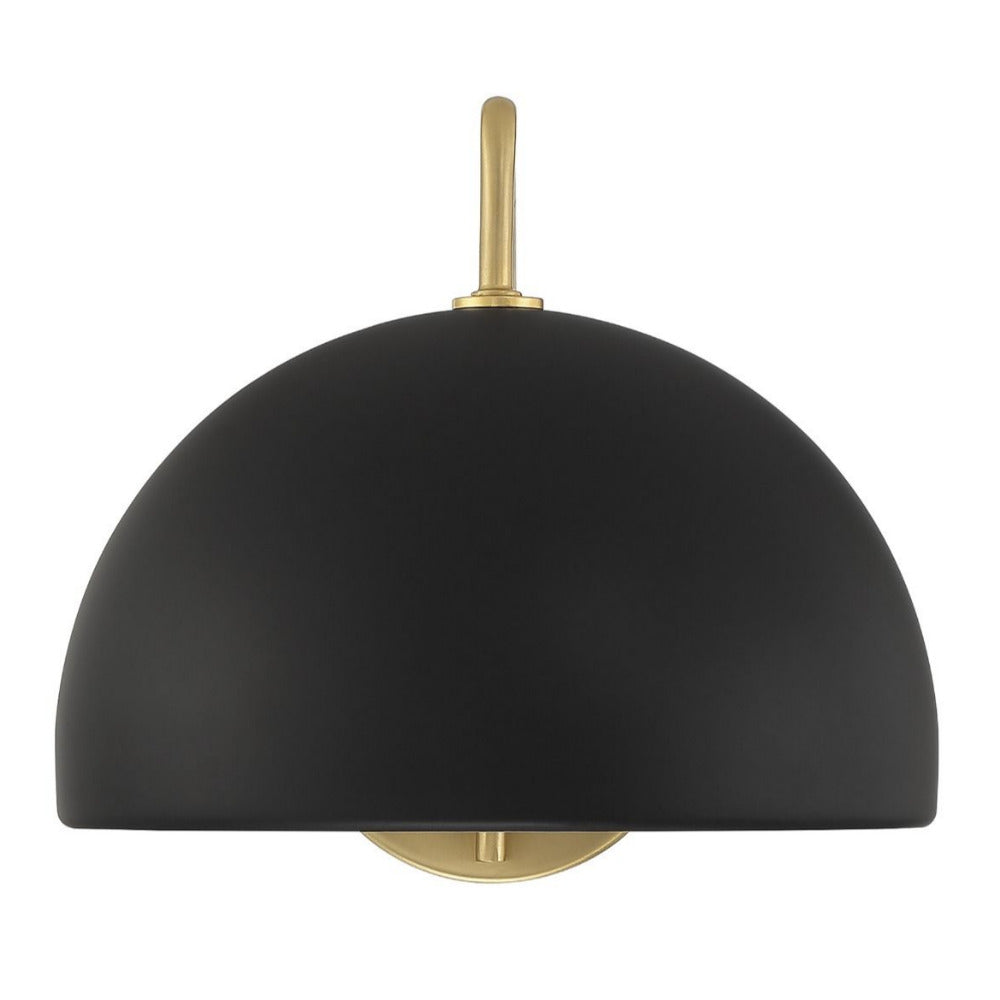

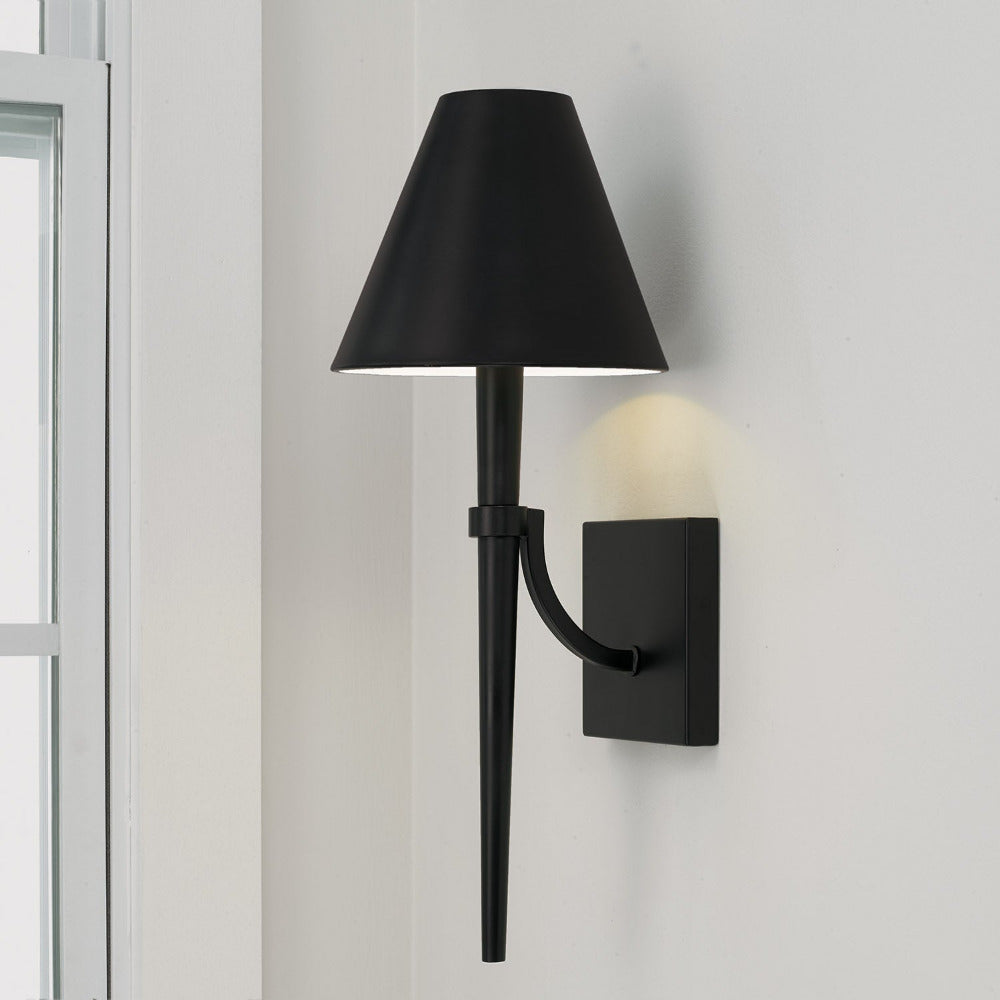

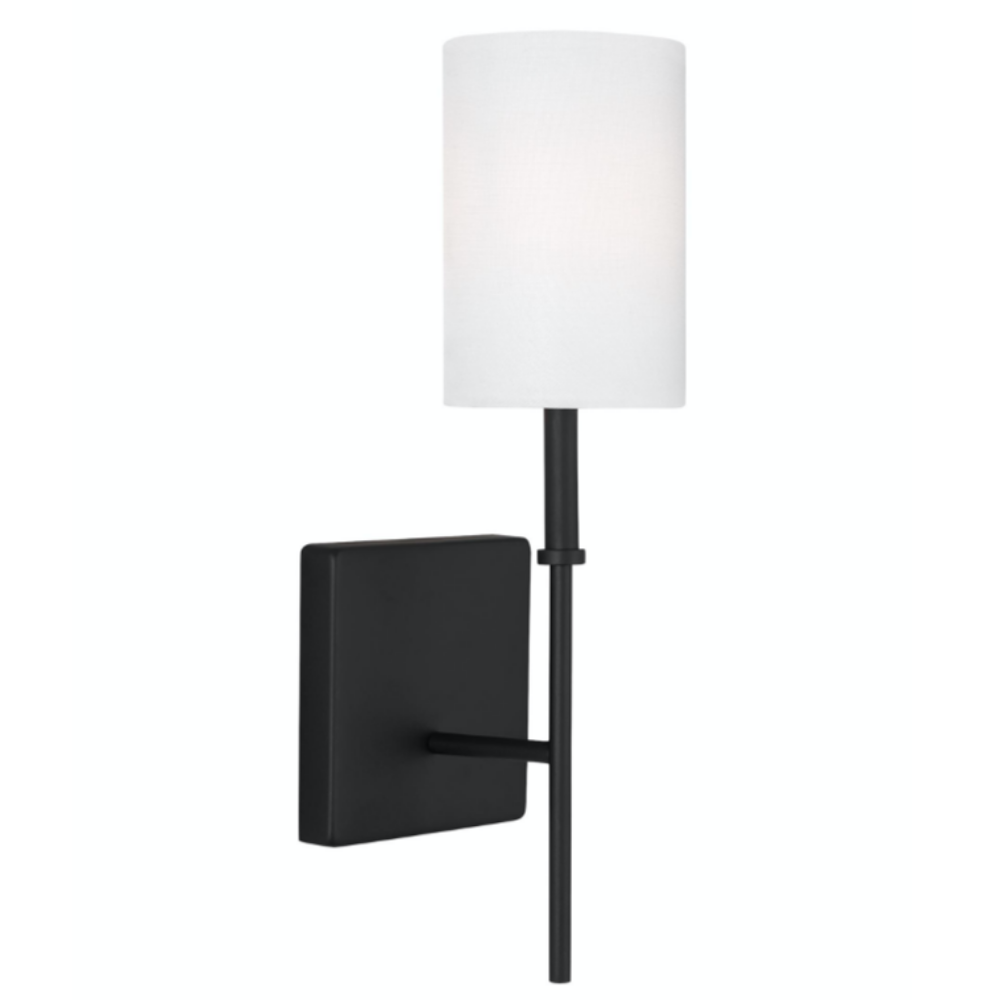

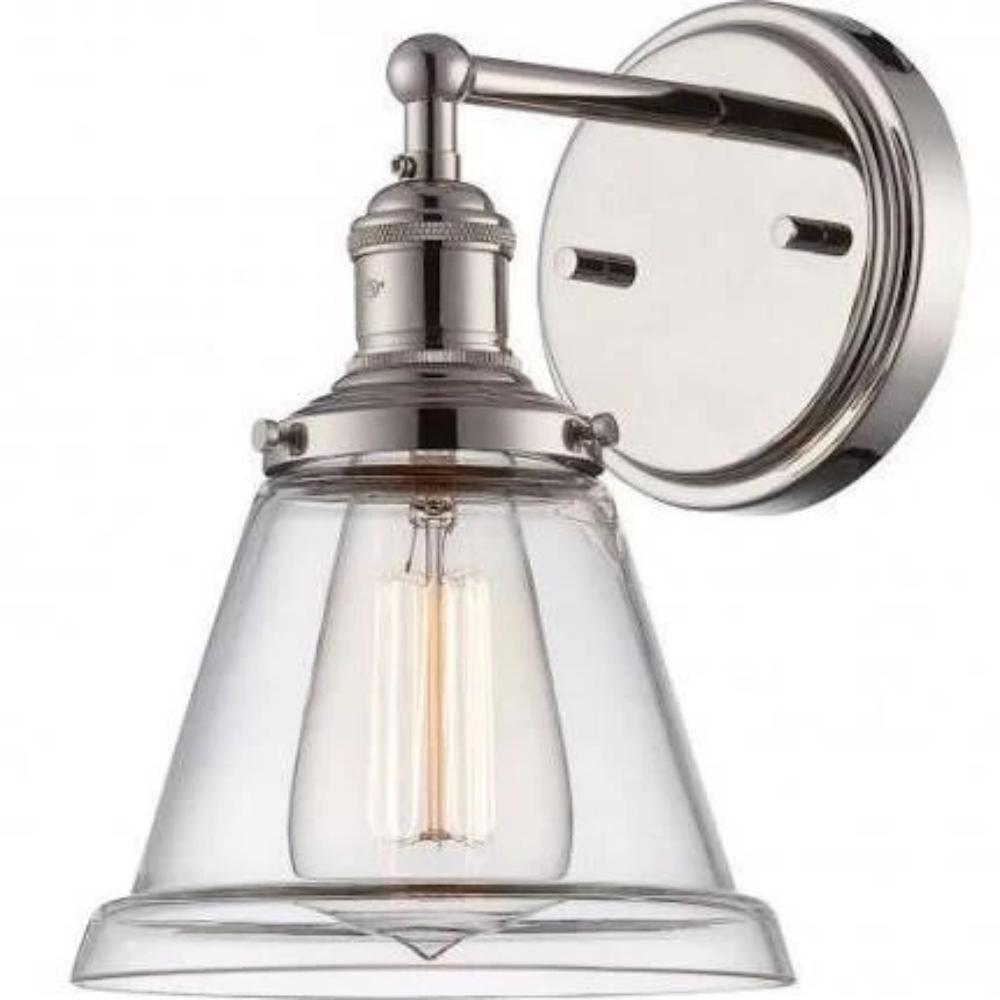

INDOOR SCONCE
Ceilling Height | Fixture Height |
---|---|
9 feet and above | 66" - 72" |
Below 9 feet | 60" - 66" |

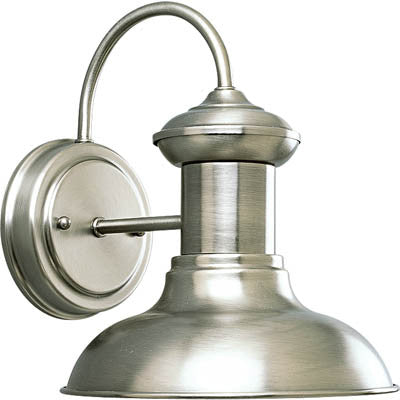

OUTDOOR SCONCE
Doorway Height | Height of Fixture (1/4 height of doorway) |
---|---|
80 inches | Approximately 20" |
84 inches | Approximately 21" |
96 inches | Approximately 24" |
